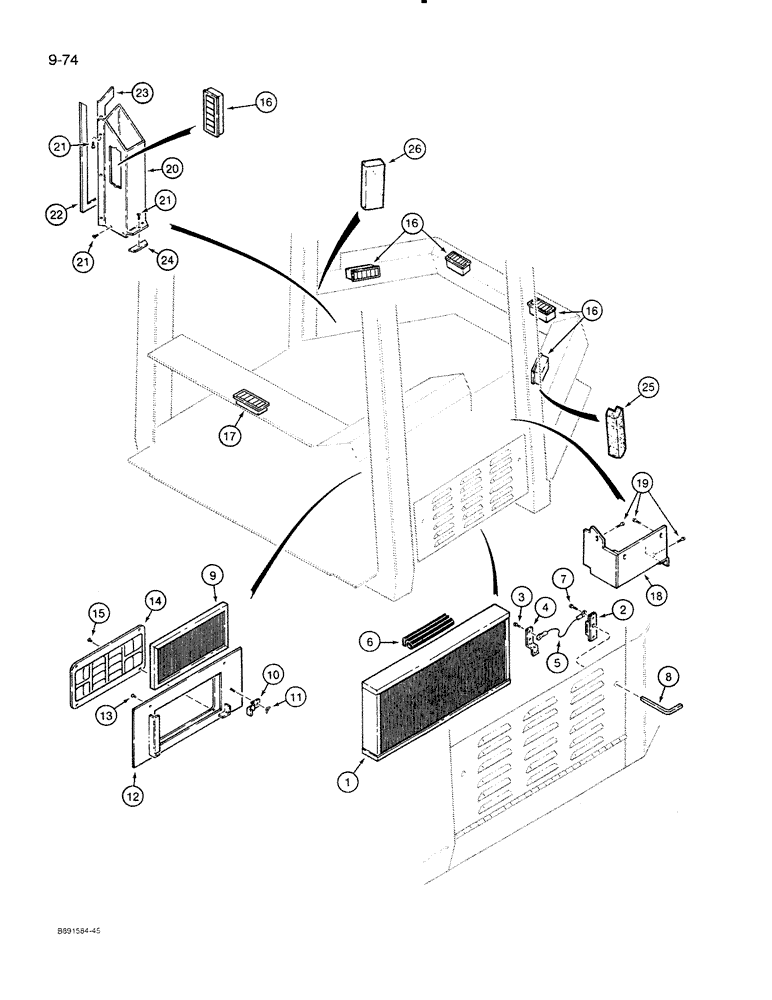

Запчасти Case 821 (9-074) - CAB FILTERS, VENTS, AND LOUVERS, *CABS WITH SINGLE LOUVER AIR VENT (ITEM 20) (09) - CHASSIS/ATTACHMENTS

1

1970006C2

AIR CLEANER,Cab, 508mm L x 228.6mm W x 55.8mm Thk

Filter, Air, Cab

1шт.

2

1339773C1

LOCK

LATCH - filter door

2шт.

3

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex, self-tapping, 1/4 NC x 3/4 inch

4шт.

4

1339848C2

SUPPORT

CATCH - filter door

2шт.

5

1339924C1

CABLE

- filter door stop

1шт.

6

1339834C1

SEAL

- filter door, if used

1шт.

7

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex, self-tapping, 1/4 NC x 3/4 inch

4шт.

8

S115083

KEY

- lock, access door

1шт.

The panel that this key goes thru is 223667A1.

1шт.

9

1970098C1

FILTER

- air, recirculating

1шт.

10

1977780C1

SUPPORT

BRACKET - mounting, filter

1шт.

11

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

12

1977783C2

SUPPORT

FRAME - recirculation, filter and louver

1шт.

13

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

2шт.

14

1970073C1

ORIFICE RING

LOUVER - air, recirculating

1шт.

15

187-1329

SELF-TAP SCREW,Cross Oval Hd, #6 x 3/4"

SCREW - self-tapping, Phillips, No. 6-20 x 3/4 inch

4шт.

16

1990950C1

VENT

LOUVER - bezel

5шт.

17

1971238C1

VENT

LOUVER - cab, rear window

1шт.

18

1339900C5

PANEL

COVER - seal, air recirculating

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

20

1970095C3

DUCT

VENT - air, high rise, single louver, no longer available, order (1) 1344366C1 double louver vent, (1) 1958752C1 louver, (8) 143309C1 screws, and use 55 inches (1400) mm of 195917C2 bulk seal, see items 15, 19, and 21-23 on Figure 9-076

1шт.

See Figure 9-076 for double louver vent and mounting.

1шт.

21

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan Phillips head, No.10-16 x 3/8 inch

6шт.

22

1977879C1

SEAL

- air vent, 360 mm long

1шт.

23

1977878C1

SEAL

- air vent, 402 mm long

1шт.

24

1977880C1

SEAL

- air vent, 65 mm long

1шт.

25

1344140C1

SEAL

- adhesive backed, 178 mm long, right-hand air duct at post

1шт.

26

98358C1

SEALING STRIP

SEAL - adhesive backed, 210 mm long, left-hand air duct at post, cut from 1974883C1 below

1шт.

1974883C1

SEAL

- adhesive backed, 600 inch (15,240 mm) long

1шт.
