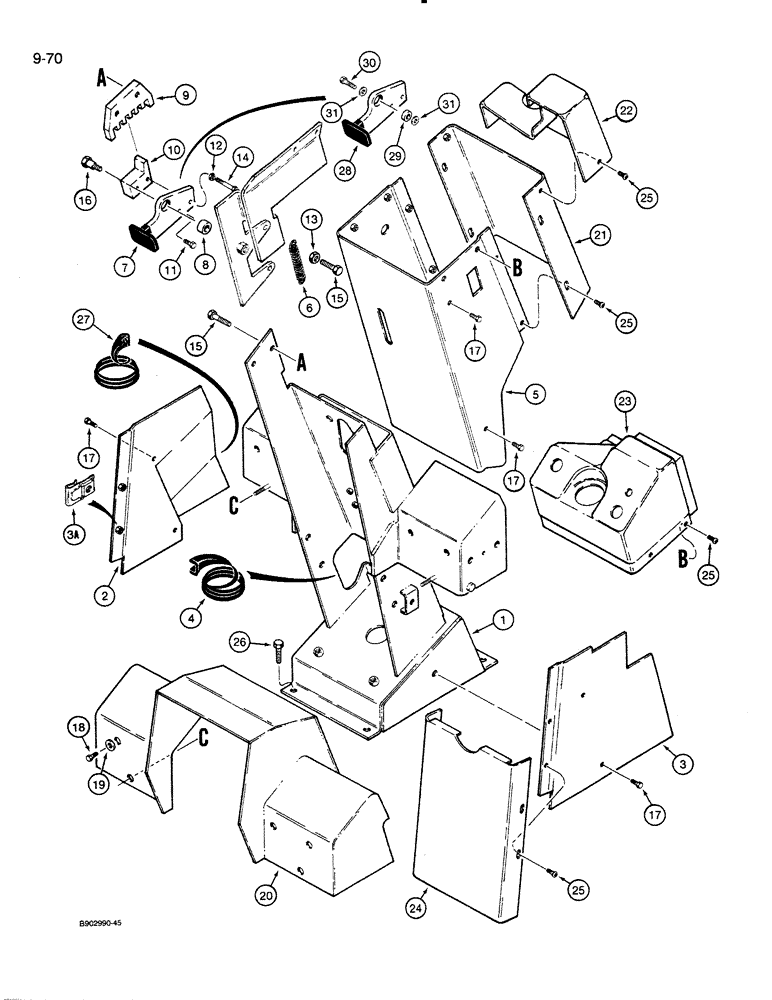

Запчасти Case 821 (9-070) - PEDESTAL COVERS AND TILT LATCH, *PRIOR TO P.I.N. JAK0024165 (09) - CHASSIS/ATTACHMENTS

1

1970046C3

BASE

- pedestal

1шт.

2

1970010C3

COVER

- pedestal, lower left-hand side

1шт.

3

1970011C2

COVER

- pedestal, lower right-hand side

1шт.

3a

131-873

NUT,Ret, J, 1/4"-20

- speed grip, 1/4 inch NC, replaces weld nuts used on some pedestal covers

4шт.

4

1970021C1

GROMMET

TRIM - flexible, pedestal

2шт.

5

1338172C1

COVER

- pedestal, covers upper rear and right-hand and left-hand sides

1шт.

6

A163012

SPRING

- tilt latch

1шт.

7

1338174C1

LEVER

- tilt latch, no longer used, order 1990517C1 lever, 1990519C1 spacer, 413-616 bolt and two 495-81140 washers, Refs. 28 - 31 below), Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - lever

1шт.

9

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

10

1969903C4

LATCH ASSY.

LATCH - tooth

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

12

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

14

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

16

596021R1

BOLT

BOLT - shoulder, 3/8 NC x 1 inch, Ref. 7, 1338174C1, lever only

1шт.

17

1987298C1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

8шт.

18

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd

4шт.

19

195-81022

WASHER,3/8" x 7/8" x .066"

- flat, 3/8 x 7/8 x 1/16 inch

4шт.

20

1339987C1

COVER

- brake shaft

1шт.

21

1338170C1

COVER

- pedestal, upper front

1шт.

22

1977339C1

COVER

- steering column, front

1шт.

23

1977338C1

COVER

- steering column, rear

1шт.

24

1969910C2

COVER

- pedestal, lower center

1шт.

25

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

14шт.

26

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - special, 3/8 NC x 1-1/4 inch

4шт.

27

D38500

LINING

TRIM - 10 inch long, cut from F42827 bulk, see below

1шт.

28

1990517C1

LEVER

- tilt latch, without bushing

1шт.

29

1990519C1

SPACER

- lever, used with 1990517C1 lever

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

1шт.

31

496-81024

WASHER,0.41" ID x 1.25" OD x 0.07" Thk

- flat, 13/32 x 1-1/4 x 1/16 inch, if used (Replaces 495-81140)

2шт.

F42827

TRIM,2946.4mm L

TRIM - 116 inch long

1шт.
