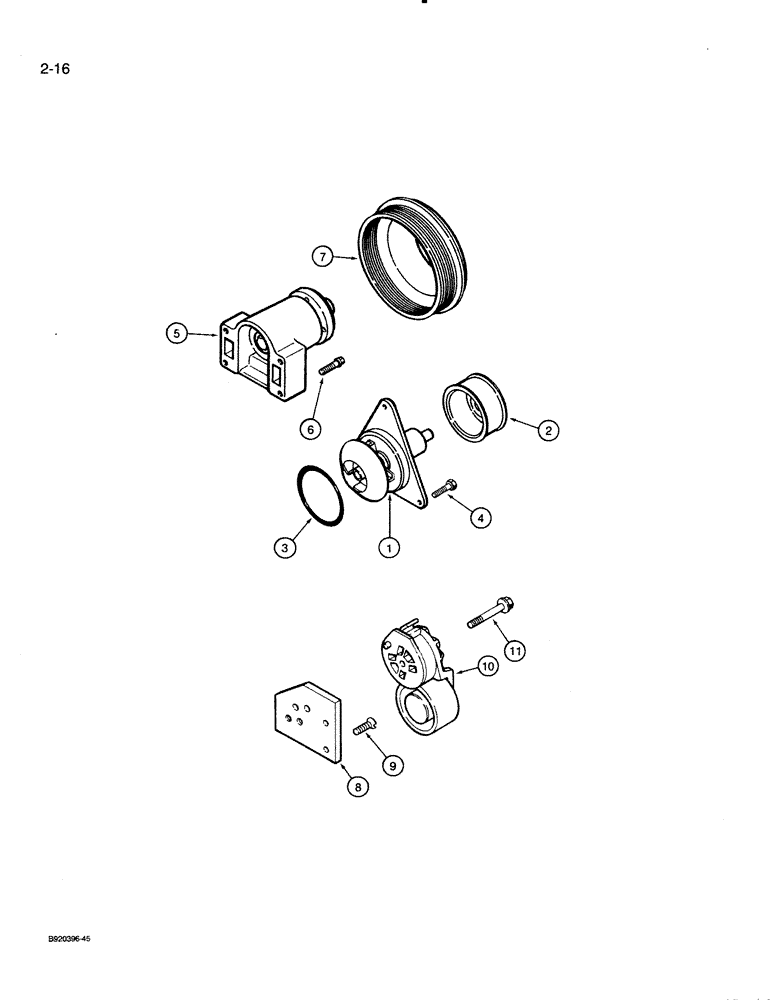

Запчасти Case 821 (2-016) - WATER PUMP SYSTEM, 6T-830 ENGINE (02) - ENGINE

AR77704

PUMP, WATER

PUMP - water, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

J800976R

REMAN-WATER PUMP

821 6T-830 ENGINE, Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77704

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

821 6T-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT - fan

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

4шт.

7

J914462

PULLEY,163mm OD

- fan

1шт.

8

J911473

BRACKET

- mounting, tensioner (Replaces J905936)

1шт.

Correct drawing can be found Figure 4-062 Ref. 7

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 - 1.25 x 25 mm

2шт.

10

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

A77817 Pulley replacement kit can be used to replace the pulley portion of this tensioner.

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, Grade 10.9 854-10075 Bolt.

1шт.
