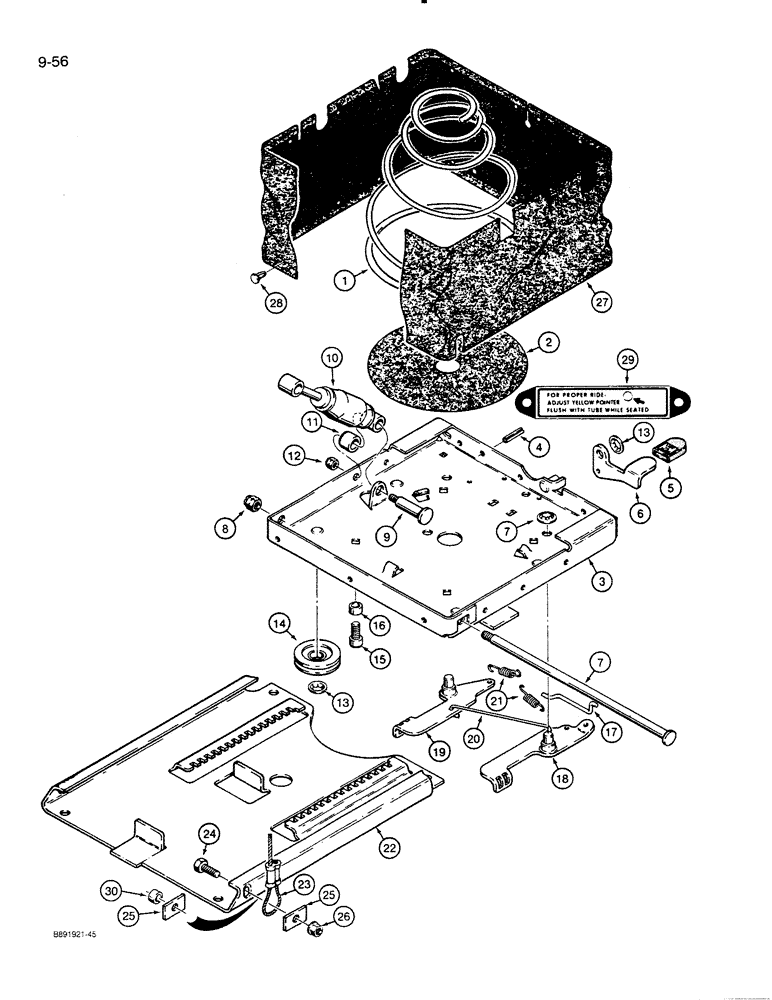

Запчасти Case 821 (9-056) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts on Figures 9-052 and 9-054, Includes: Ref. 1 - 30

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, includes parts on Figures 9-052 and 9-054, Includes: Ref. 1 - 30

1шт.

1

A45497

SPRING

- conical

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

2

A45530

PAD

- spring

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - lower

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

5

D82819

CAP

AND DECAL - slide lever

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

6

D82817

LEVER

- slide

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

7

A47762

SHAFT

- bearing

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

8

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

9

A45056

STEP BOLT

BOLT - shock

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

10

D82835

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

11

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

1977726C1

SLIDE

KIT - slide track, Includes: Ref. 13 and 14

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

7шт.

14

N8674

ROLLER

- slide track

4шт.

15

165-181

BOLT,1/2" - 13 x 7/8"

- hex socket head, 1/2 NC x 7/8 inch

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

16

N6713

SPACER

- bolt

1шт.

17

D82814

ROD

- latch

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

18

D82813

LATCH

- right-hand

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

19

D82812

LATCH

- left-hand

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

20

D82816

LINK

- latch

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

21

D82815

SPRING

- latch

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE AND TRACK - seat

1шт.

23

REF

INSTRUCTION

CABLE - plate, see Figure 9-052

2шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

25

N6874

WASHER

- special

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

1977727C1

BOOT

KIT - vinyl cover, Includes: Ref. 27 - 29

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-52 and 9-54

1шт.

27

N6295

BOOT

COVER - vinyl

1шт.

28

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch

22шт.

29

A47778

DECAL

- instruction

1шт.

30

N6713

SPACER

- cable mounting

2шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, Includes Refs. 1, 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 15, 17, 18, 19, 20, 21 and 1977727C1 and those on Figures 9-052 and 9-054

1шт.
