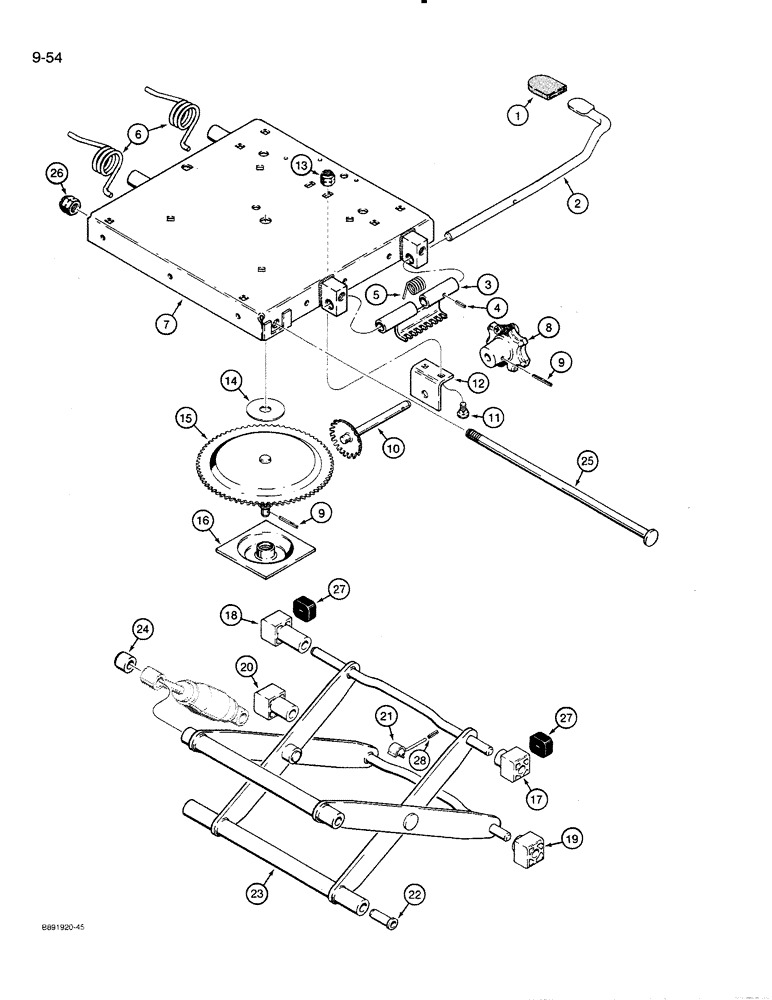

Запчасти Case 821 (9-054) - SUSPENSION SEATS (09) - CHASSIS/ATTACHMENTS

1954778C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, vinyl, cab or canopy models, includes parts on Figures 9-052 and 9-056, Includes: Ref. 1 - 28

1шт.

97150C1

SEAT ASSY.

SEAT ASSEMBLY - suspension, cloth, cab models, includes parts on Figures 9-052 and 9-056, Includes: Ref. 1 - 28

1шт.

1

A45472

CAP

AND DECAL - height adjustment lever

1шт.

2

D82857

LEVER

- height adjustment

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

3

A47381

LATCH

- lever

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

4

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

5

A47382

SPRING

- latch

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

6

D82863

SPRING

- housing

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

7

N6870

HOUSING

- upper

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

8

A47763

KNOB

ASSEMBLY - includes handle and decals, which are not serviced separately

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

9

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

10

A45513

GEAR

AND SHAFT - adjustment, weight

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

11

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - carriage, 1/4 NC x 1/2 inch

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

12

A45531

BRACKET

- shaft

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

14

D82834

WASHER

- thrust

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

15

A45505

GEAR

AND SHAFT - suspension plate

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

16

A45504

SPRING WASHER

- spring

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

1977725C1

SLIDER

KIT - slider block, Includes: Ref. 17 - 22

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

17

P0045517A

WASHER

- slider, 2-9/16 inch

1шт.

18

A45515

BLOCK

- slider, 1-9/16 inch

1шт.

19

A45516

BLOCK

- slider, 2-3/16 inch

1шт.

20

A45512

BLOCK

- slider, 1-3/16 inch

1шт.

21

A49160

INDICATOR

- ride height

1шт.

22

A47760

BUSHING

TUBE - bearing

4шт.

23

A47759

ARM

- suspension

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

24

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

25

A47762

SHAFT

- bearing

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

27

A45054

BUMPER,Neoprene

- seat

2шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

28

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

Part of seat suspension support kit P/N 1977722C1 and Figures 9-54 and 9-56

1шт.

1977722C1

SUSPENSION BLOCK

KIT - seat suspension support, Includes Refs. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 1977725C1, 23, 24, 25, 26, 27 and 28 and those on Figures 9-052 and 9-056

1шт.
