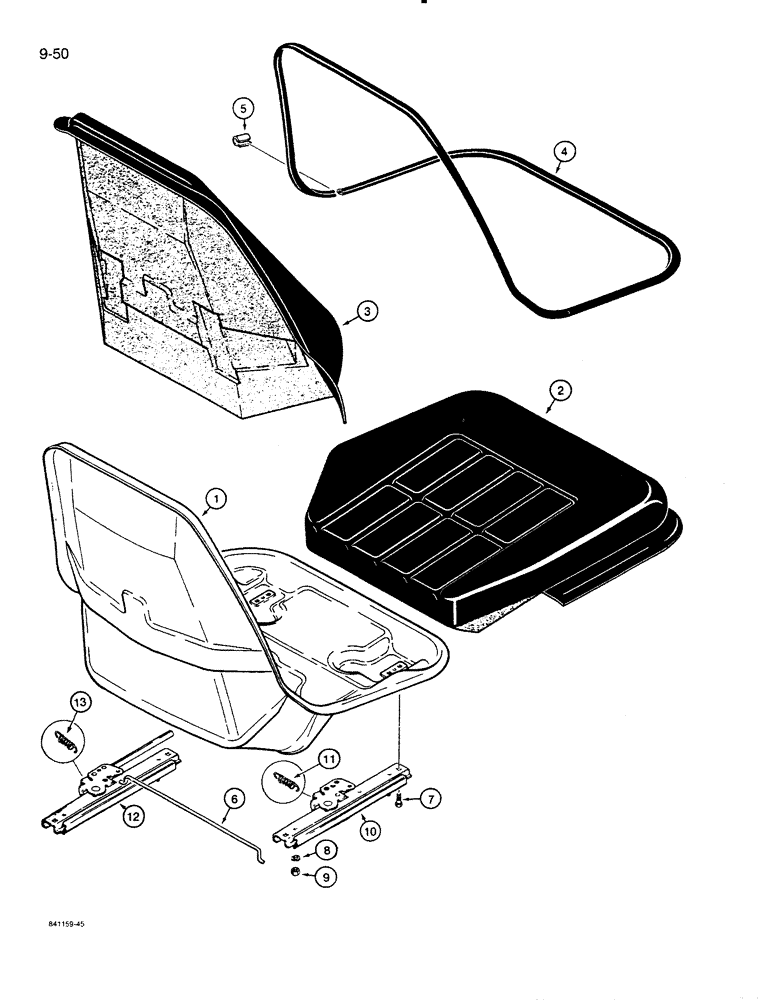

Запчасти Case 821 (9-050) - STANDARD SEAT (09) - CHASSIS/ATTACHMENTS

1971205C1

SEAT ASSY.

SEAT ASSEMBLY - standard, 6 inch seat travel, if used, Includes: Ref. 1 - 13

1шт.

L108783

SEAT

ASSEMBLY - standard, 5 inch seat travel, if used, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8462

CUSHION

- seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

- backrest, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER - strip, cushion and shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

6

L35492

ROD

- connecting

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

1977629C1

ADJUSTER

SLIDE - seat, right-hand, 6 inch seat travel, included with 1971205C1 seat assembly, Includes: Ref. 11

1шт.

10

A64818

ADJUSTER

SLIDE - seat, right-hand, 5 inch seat travel, included with L108783 seat assembly, Includes: Ref. 11

1шт.

11

L35503

SPRING

- return, slide, included with 1977629C1 and A64818 slides

1шт.

12

1977628C1

ADJUSTER

SLIDE - seat, left-hand, 6 inch seat travel, included with 1971205C1 seat assembly, Includes: Ref. 13

1шт.

12

D59688

SLIDE

- seat, left-hand, 5 inch seat travel, included with L108783 seat assembly, Includes: Ref. 13

1шт.

13

L35503

SPRING

- return, slide, included with 1977628C1 and D59688 slides

1шт.

N7802

CLIP

KIT - clip, includes Ref. 5 and six additional narrow clips

1шт.
