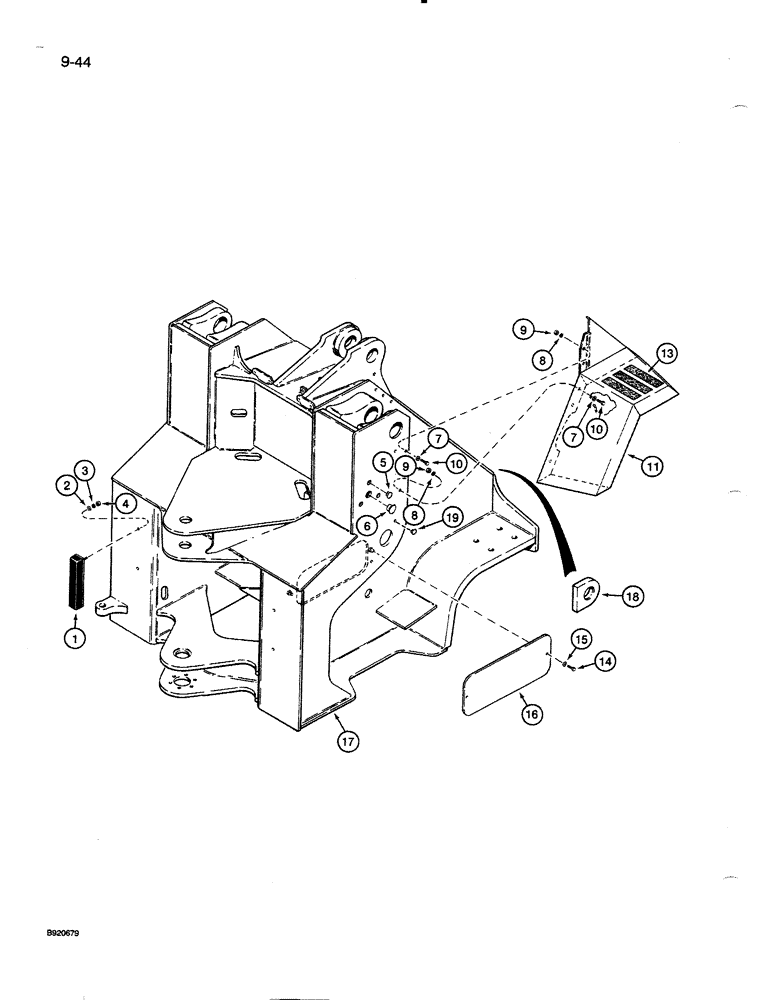

Запчасти Case 821 (9-044) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

L108504

BUMPER

- chassis

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16 inch

6шт.

6

353-415

PLUG,Dome, 1.500" hole, Nylon

- nylon, 1-1/2 inch

2шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

10шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

11

L125342

FENDER

- front, right-hand

1шт.

12

L125343

FENDER

- front, left-hand, not shown

1шт.

13

D55216

PAD,2" x 9"

PAD - non-skid, front fender

6шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

16

L125240

LARGE PLATE

COVER - access, front frame

2шт.

17

L125158

FRAME

- front chassis

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET - lift and tie down, welded to front frame, if used

2шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- nylon, 9/16 inch, used to plug unused holes in frame

1шт.
