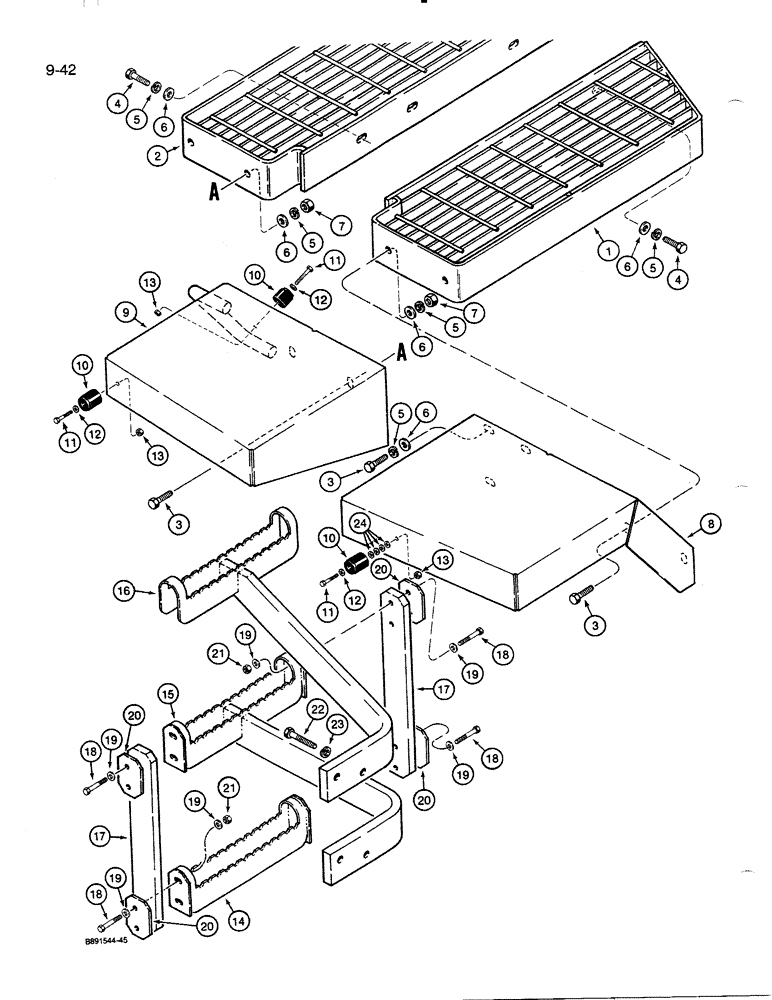

Запчасти Case 821 (9-042) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L126892

GRATING

STEP - platform, right-hand, operators compartment

1шт.

2

L126950

STEP

- platform, left-hand, operators compartment

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

16шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

L125272

FENDER

- rear, right-hand

1шт.

9

L125273

FENDER

- rear, left-hand

1шт.

10

L126483

BUMPER

- door step

3шт.

Per tech The only thing that holds out this bumper is a spacer 311070A1.

1шт.

11

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

13

131-461

LOCK NUT,1/4"-20

NUT - hex, self-locking, 1/4 inch NC

3шт.

14

L128543

STEP

- lower, rear frame, was L119135, also order Ref. 15, L128544, center step shown below

1шт.

15

L128544

STEP

- center, rear frame, was L119128, also order Ref. 14, L128543, lower step shown above

1шт.

16

L126167

STEP

- top, rear frame

1шт.

17

L126918

SUPPORT

STRAP - step hanger

2шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

8шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), If used 3/8"

16шт.

20

L119133

LARGE PLATE

PLATE - support, attaches on outside of step hangers at middle and lower steps

4шт.

21

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

8шт.

22

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

495-81104

WASHER,.266" x 1 1/4" x .069"

- flat, 17/64 x 1-1/4 x 1/16 inch, if used

4шт.
