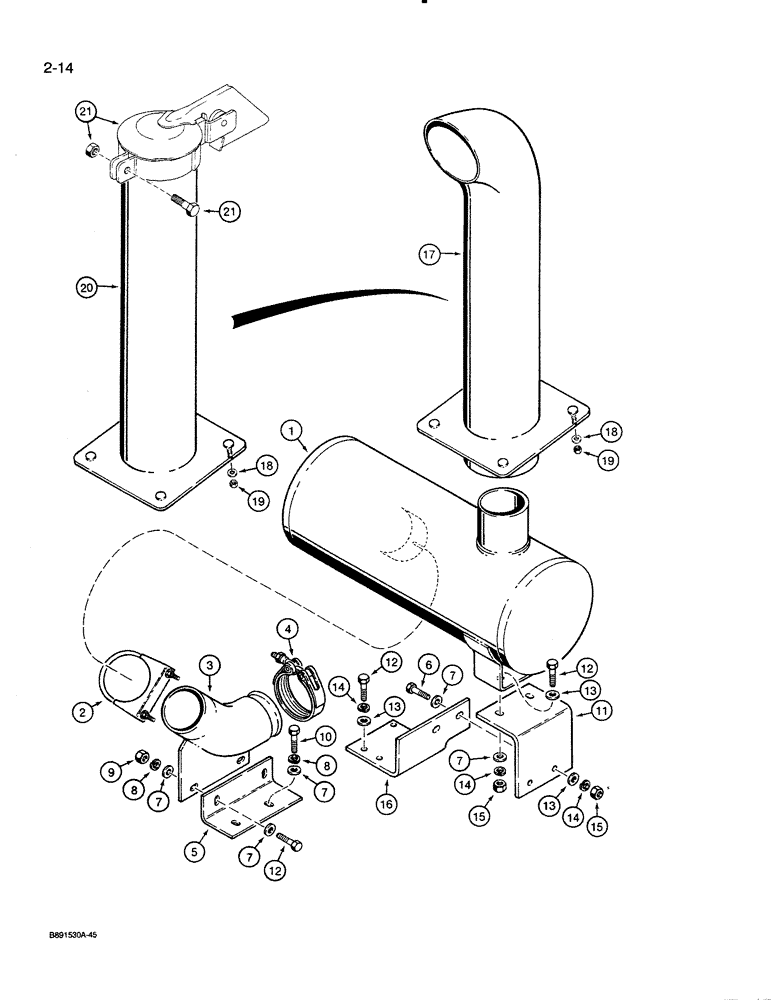

Запчасти Case 821 (2-014) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A189406

MUFFLER

- exhaust

1шт.

2

A162896

CLAMP

- band, muffler to turbocharger elbow

1шт.

3

A184986

ELBOW

- turbocharger exhaust

1шт.

4

A170807

CLAMP,102mm ID

T-bolt, tube retaining

1шт.

5

A189061

SUPPORT

BRACKET - turbocharger elbow

1шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 35 mm

2шт.

7

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

10шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

825-1410

NUT,M10, Cl 8

2шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

11

A189408

SUPPORT

BRACKET - muffler, upper

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

14

892-11010

LOCK WASHER,M10

8шт.

15

825-1410

NUT,M10, Cl 8

4шт.

16

A189011

SUPPORT

BRACKET - muffler, lower

1шт.

17

L127961

WHISTLE

PIPE - exhaust, muffler, curved, if used

1шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

19

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 NC

4шт.

20

L125217

PIPE

- exhaust, muffler, straight, if used

1шт.

21

L125497

CAP

- rain, 6 inch, if used

1шт.
