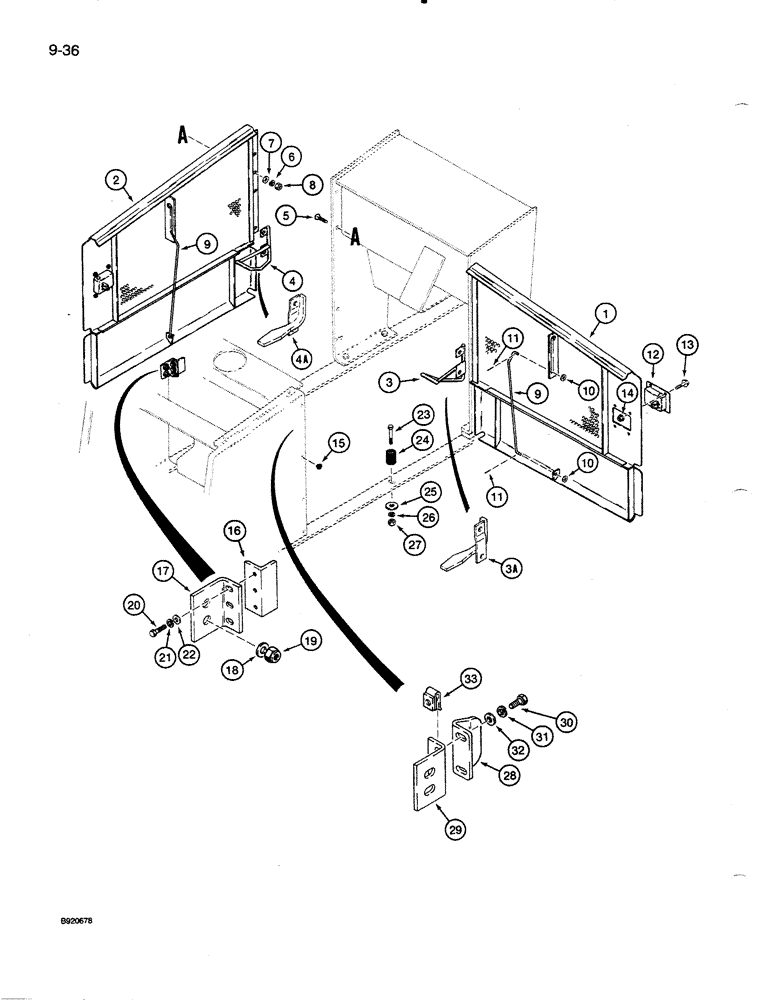

Запчасти Case 821 (9-036) - SIDE DOORS (09) - CHASSIS/ATTACHMENTS

1

L125601

HOOD ASSY.

DOOR - with tool tray, hood side, right-hand

1шт.

2

L125602

HOOD ASSY.

DOOR - with tool tray, hood side, left-hand

1шт.

3

L125625

RETAINER

STOP - tool tray, right-hand, no longer available, order Ref. 3A, L129473, stop

1шт.

3a

L129473

RETAINER

STOP - tool tray, right-hand

1шт.

4

L125623

RETAINER

STOP - tool tray, left-hand, no longer available, order Ref. 4A, L129474, stop

1шт.

4a

L129474

RETAINER

STOP - tool tray, left-hand

1шт.

5

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 3/8 NC x 1-1/4 inch

10шт.

6

492-11038

LOCK WASHER,3/8"

10шт.

7

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

10шт.

8

425-106

NUT,3/8"-16, Cl 5

10шт.

9

L125405

ROD

- support, door

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

11

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

12

R56221

LATCH

HANDLE - door latching

2шт.

13

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

8шт.

14

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

15

L126856

RIVET

CUSHION - rubber

8шт.

16

L125587

ANGLE

LATCH - door handle, if used

2шт.

17

L125588

SUPPORT

BRACKET - door latch, if used

2шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

19

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

20

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, used with Ref. 16, L125587, and Ref. 17, L125588 bracket

6шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with Ref. 16, L125587, and Ref. 17, L125588 bracket 1/4"

6шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Used with Ref. 16, L125587, and Ref. 17, L125588 bracket 1/4", SAE

6шт.

23

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, used with S112232 spacer

2шт.

23

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch, used with D33216 spacer

2шт.

24

S112232

SPACER - rubber, 1-3/16 inch long, no longer used, order D33216 spacer and 413-652 bolt

2шт.

24

D33216

PIVOT

SPACER - rubber, 2 inch long, fastens to rear frame below side doors

2шт.

25

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, hardened, special

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

L127958

LARGE PLATE

LATCH - door handle, if used

2шт.

29

L127956

SUPPORT

BRACKET - door latch, if used

2шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, used with Ref. 28, L127958, and Ref. 29, L127956 bracket

4шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used with Ref. 28, L127958, and Ref. 29, L127956 bracket 5/16"

4шт.

32

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Used with Ref. 28, L127958, and Ref. 29, L127956 bracket

4шт.

33

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16 inch NC, used with Ref. 28, L127958, latch and Ref. 29, L127956 bracket

4шт.
