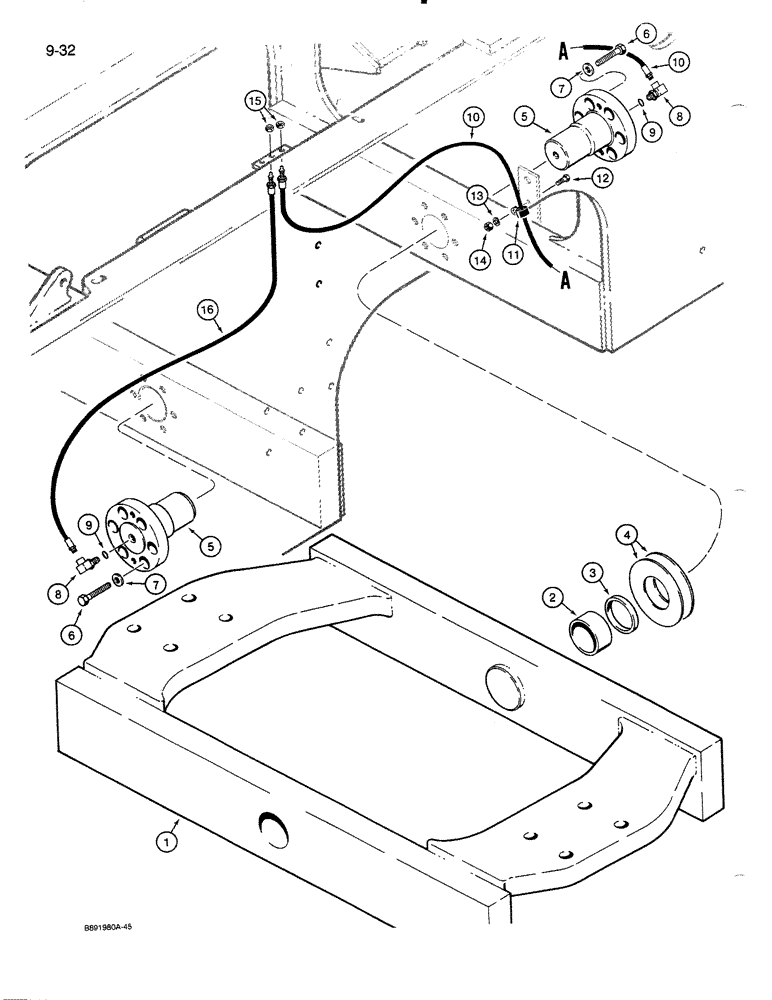

Запчасти Case 821 (9-032) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

L129570

LINKAGE YOKE

TRUNNION ASSEMBLY - rear frame, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

- trunnion

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - trunnion pin

2шт.

4

L110183

SHIM,3.18mm Thk

(1/8") 3.18mm Thk

1шт.

4

L110184

SHIM,4.76mm Thk

(3/16") 4.76mm Thk

1шт.

4

L110185

SHIM,6.35mm Thk

(1/4") 6.35mm Thk

1шт.

5

L125294

TRUNNION

PIN - trunnion

2шт.

6

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 25/32 x 1-3/8 x 9/64 inch, hardened

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

- 90 degree, adj, 7/16-20 O-ring boss x 1/8 inch fem PT, Includes: Ref. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

L54694

HOSE,4.8mm ID x 1041mm L

- 41 inch long, lubrication, front trunnion

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- hose

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

F53473

LOCK NUT,1/8-27 NPSM

- lubrication hose

2шт.

16

L72667

HOSE

- 60 inch long, lubrication, rear trunnion

1шт.
