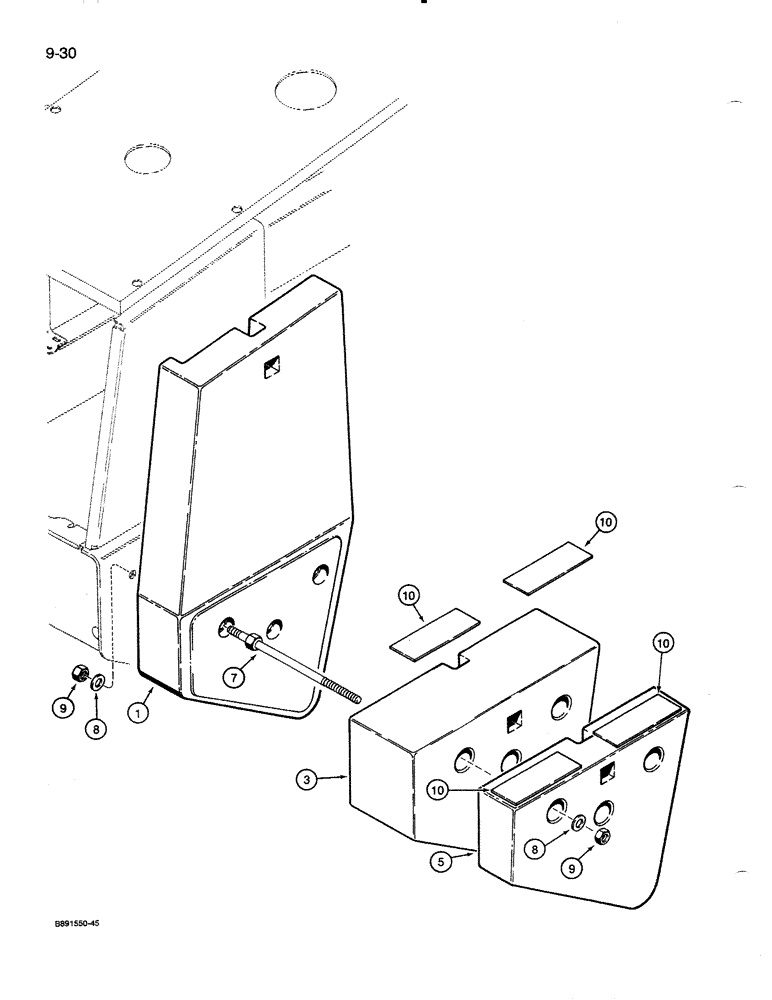

Запчасти Case 821 (9-030) - COUNTERWEIGHTS, 5400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

L125466

BALANCER

COUNTERWEIGHT - 1000 pound, right-hand rear

1шт.

4

L125467

BALANCER

COUNTERWEIGHT - 1000 pound, left-hand rear, not shown

1шт.

5

L125468

BALANCER

COUNTERWEIGHT - 500 pound, right-hand rear

1шт.

6

L125469

BALANCER

COUNTERWEIGHT - 500 pound, left-hand rear, not shown

1шт.

7

L129899

STUD

- counterweight

6шт.

8

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

12шт.

9

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

12шт.

10

S243101

WEAR PAD

PAD - non-skid, counterweight

8шт.
