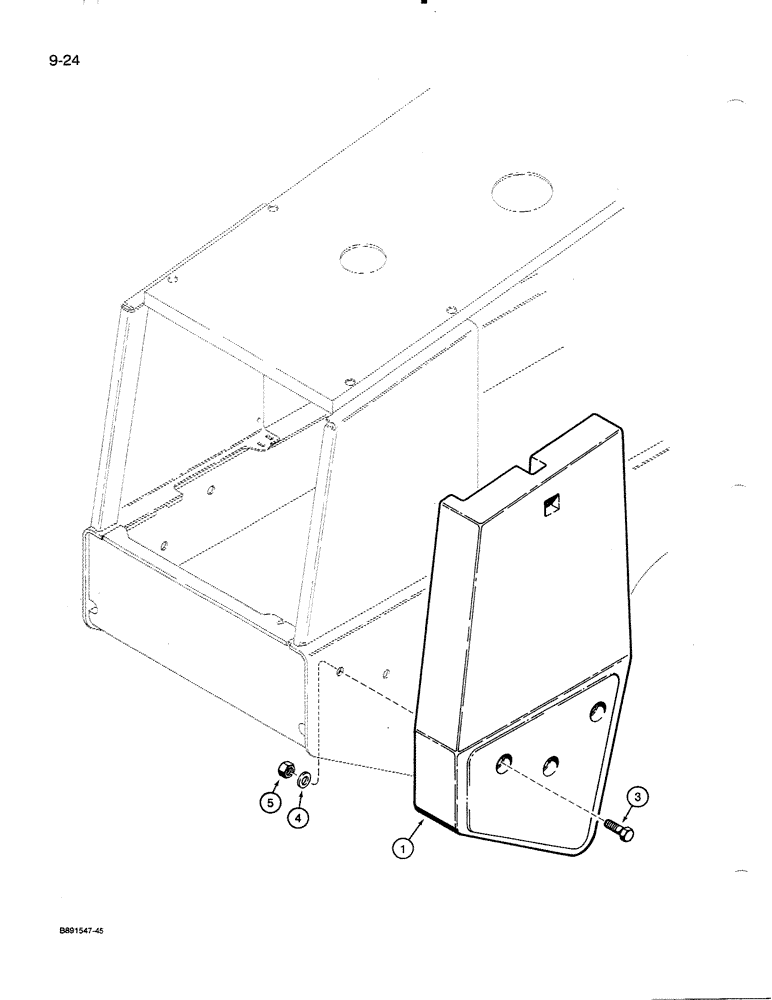

Запчасти Case 821 (9-024) - COUNTERWEIGHTS, 2400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

413-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

- hex, 1 NC x 3-1/4 inch

6шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

6шт.

5

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

6шт.
