(9-020) - PIN AND CLEVIS HITCH AND MOUNTING

Запчасти Case 821 (9-020) - PIN AND CLEVIS HITCH AND MOUNTING (09) - CHASSIS/ATTACHMENTS

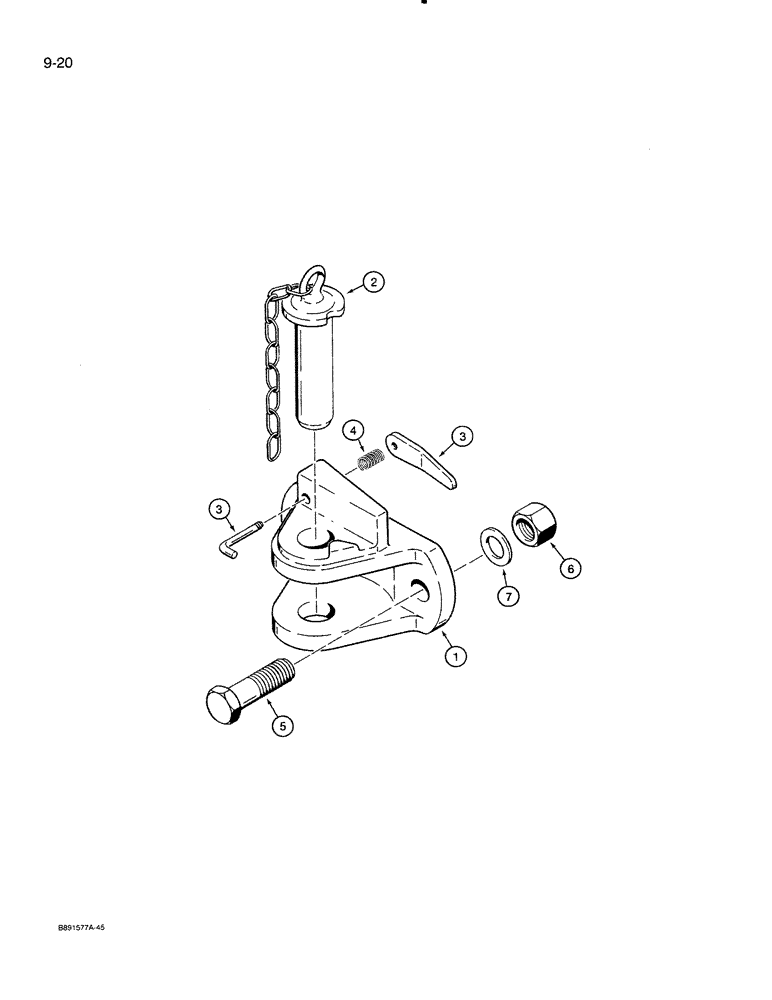

Схема запчастей Case 821 - (9-020) - PIN AND CLEVIS HITCH AND MOUNTING (09) - CHASSIS/ATTACHMENTS
3
5
6
2
1
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L125487

HITCH ASSY

HITCH ASSEMBLY - clevis, includes pin, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - clevis

1шт.

2

S300988

PIN

Includes Chain

1шт.

3

S300989

HANDLE

- includes locking pin

1шт.

4

S300990

SPRING

- compression

1шт.

5

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

2шт.

6

329-1016

NUT,1"-8, G8

2шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

2шт.
