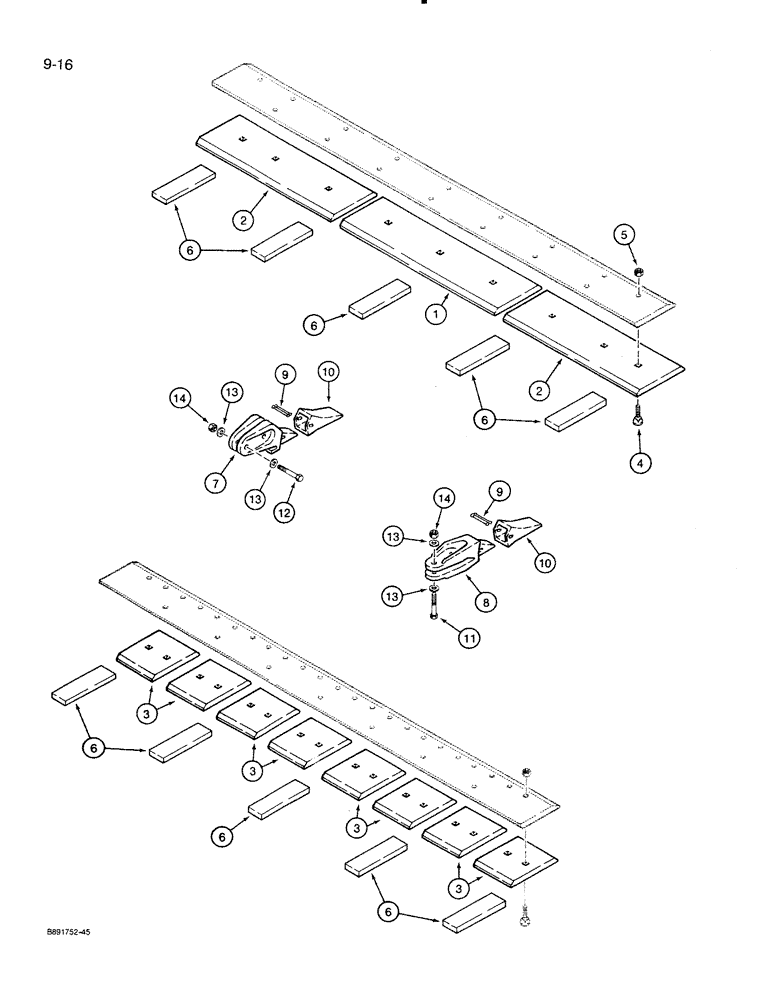

Запчасти Case 821 (9-016) - AUXILIARY BUCKET (09) - CHASSIS/ATTACHMENTS

1

L125171

EDGE, CUTTING

EDGE - cutting, center, bolt-on, 1009 mm long, used with (2) Ref. 2, L125172, bolt-on edges shown below and Ref. 15, L125135, or Ref. 16, L125790, weld-on edges, shown on Figure 9-014, and wear plates

1шт.

2

L125172

EDGE, CUTTING

EDGE - cutting, end, bolt-on, 874 mm long, used with Ref. 1, L125171, bolt-on edge shown above and Ref. 15, L125135, or Ref. 16, L125790, weld-on edges, shown on Figure 9-014, and wear plates

2шт.

3

L125814

EDGE, CUTTING

EDGE - cutting, bolt-on, 230 mm long, used with Ref. 16, L125790, weld-on edge, shown on Figure 9-014, and wear plates

8шт.

4

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8, on cutting edge and wear plates

9-16шт.

5

329-1016

NUT,1"-8, G8

Bolt-on cutting edge and wear plates 1"-8, G8

9-16шт.

6

R28128

LARGE PLATE

PLATE - wear, weld-on, bolt on cutting edge and wear plates

5шт.

L125197

TEETH

TOOTH ASSEMBLY - bucket, corner, Includes: Ref. 7 - 10, teeth

2шт.

R51174

TEETH

TOOTH ASSEMBLY - bucket, center, Includes: Ref. 7 - 10, teeth

7шт.

7

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, part of L125197 tooth assembly, teeth

1шт.

8

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, part of R51174 tooth assembly, teeth

1шт.

9

R29117

PIN, ROLL

PIN - flex, point retaining, part of L125197 or R51174 tooth assembly, bucket teeth

1шт.

10

R51388

POINT

- tooth, part of L125197 or R51174 assembly, bucket teeth

1шт.

11

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

Bucket teeth Hex, 1"-8 x 4", G8

14шт.

12

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

Bucket teeth Hex, 1"-8 x 4 1/2", G8

4шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1 inch, hardened, bucket teeth

36шт.

14

329-1016

NUT,1"-8, G8

Bucket teeth 1"-8, G8

18шт.
