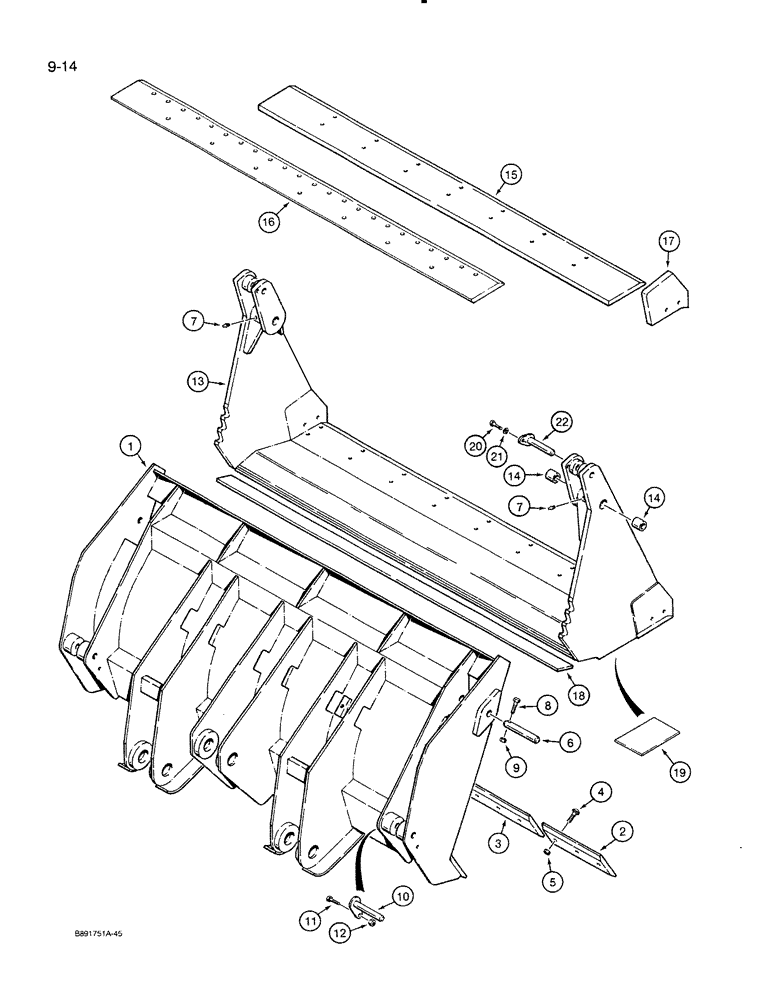

Запчасти Case 821 (9-014) - AUXILIARY BUCKET, 3.0 CUBIC YARD (2.3 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

L125808

BUCKET

ASSEMBLY - clam, used with Ref. 1 and 2, bolt-on cutting edges, Figure 9-016, also includes Ref. 1 - 16 Figure 8-018, order from Machinery Price List, Includes: Ref. 1 - 22

1шт.

L125953

BUCKET

ASSEMBLY - clam, used with Ref. 3, bolt-on cutting edges Figure 9-016, also includes Refs. 1 - 16, Figure 8-018, no longer available, order L125808 above, Includes: Ref. 1 - 7

1шт.

1

S300992

BUCKET

BLADE - bucket

1шт.

2

S300145

EDGE, CUTTING

EDGE - cutting, outer

2шт.

3

S300997

EDGE, CUTTING

EDGE - cutting, center

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

BOLT, PLOW, (Replaces 118-500) 3/4"-10 x 2", G8, Full Thd

16шт.

5

329-1012

NUT,3/4"-10, G8

16шт.

6

S300993

PIN

-, Serial Range: clam-blade

2шт.

(2 1/2" O.D.) 11 1/2" Long

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

2шт.

8

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

S300996

PIN

- Cylinder mounting, lower

2шт.

(2 1/2" O.D.) 8 13/16" Long.

1шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

S300991

BUCKET

CLAM ASSEMBLY - part of L125808 bucket, used with Ref. 1 and 2, bolt-on cutting edges, Figure 9-016, Includes: Ref. 13 - 19

1шт.

S301014

JAW

CLAM ASSEMBLY - part of L125953 bucket, service option for L125808 bucket, used with Ref. 3, bolt-on cutting edges, Figure 9-016, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

14

S300994

BUSHING

- clam

4шт.

15

L125135

EDGE, CUTTING

EDGE - cutting, clam, weld-on, front, part of S300991 clam, used with Ref. 1 and 2, bolt-on cutting edges, Figure 9-016

1шт.

16

L125790

EDGE, CUTTING

EDGE - cutting, clam, weld-on, front, part of S301014 clam, service option for S300991 clam, used with Ref. 1 and 2, or (8) Ref. 3, bolt-on cutting edges, Figure 9-016

1шт.

17

L125136

EDGE, CUTTING

EDGE - cutting, clam corner, weld-on

2шт.

18

S300998

LARGE PLATE

PLATE - wear, rear

1шт.

19

S301778

LARGE PLATE

PAD - skid, if used

5шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

22

S300995

PIN

- Cylinder mounting, upper

2шт.

(2 1/2" O.D.) 6 3/16" Long

1шт.
