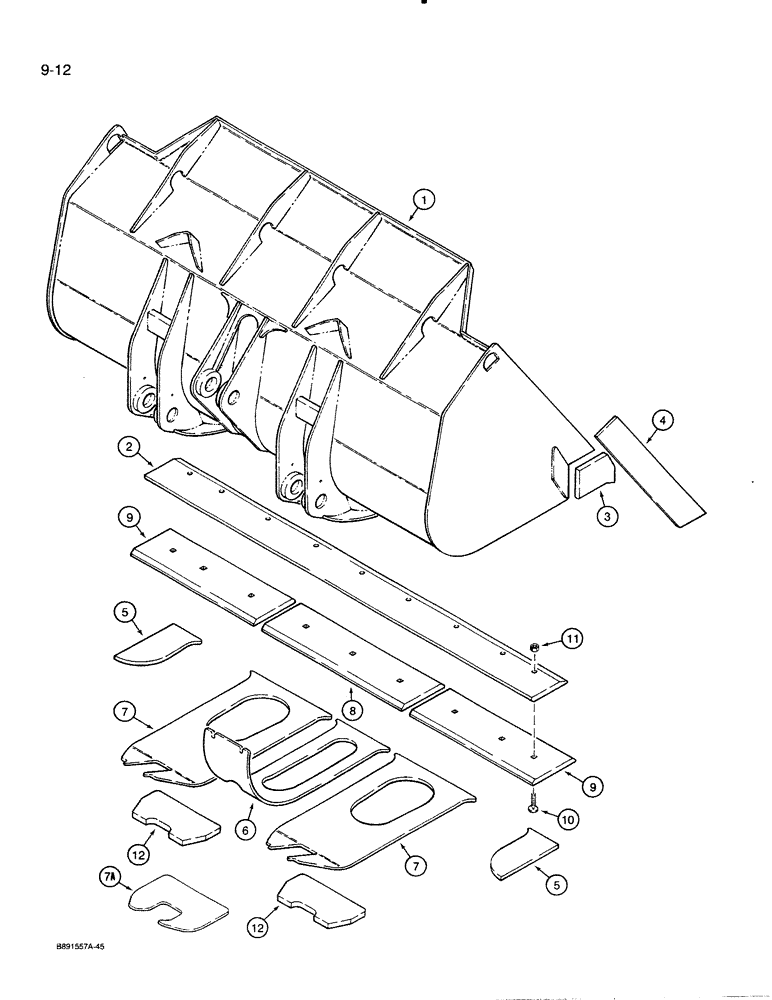

Запчасти Case 821 (9-012) - LOADER BUCKET AND CUTTING EDGES, 4.0 CUBIC YARD (3.4 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

L125729

BUCKET

ASSEMBLY - loader, no longer used, order L129341, Includes: Ref. 1 - 7

1шт.

L129341

BUCKET ASSEMBLY - loader, order from Machinery Price List, Includes: Ref. 1 - 7

1шт.

Tooth used on bucket L129341 is R51388 - assy # R51174.

1шт.

L129341 BUCKET IS 108" WIDE.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L125773

EDGE, CUTTING

EDGE - cutting, bucket, weld-on, L125729 bucket

1шт.

2

L129401

EDGE, CUTTING

EDGE - cutting, bucket, weld-on, L129341 bucket

1шт.

3

L125772

EDGE, CUTTING

EDGE - cutting, bucket corner, weld-on

2шт.

4

L125726

EDGE, CUTTING

EDGE - cutting, bucket side, weld-on

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer

2шт.

6

L125728

LARGE PLATE

PLATE - wear, center, L125729 bucket

1шт.

6

L129361

LARGE PLATE

PLATE - wear, center, L129341 bucket

1шт.

7

L125727

LARGE PLATE

PLATE - wear, bucket ear, L125729 bucket

2шт.

7

L129362

LARGE PLATE

PLATE - wear, bucket ear, L129341 bucket

2шт.

7a

L127766

LARGE PLATE

PLATE - wear, bucket ear, partial, if used

2шт.

8

L125171

EDGE, CUTTING

EDGE - cutting, center, bolt-on

1шт.

9

L125172

EDGE, CUTTING

EDGE - cutting, end, bolt-on

2шт.

10

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8, on cutting edge

9шт.

11

329-1016

NUT,1"-8, G8

Bolt-on cutting edge 1"-8, G8

9шт.

12

L125498

LARGE PLATE

PLATE - wear, bucket ear, bolt-on cutting edge

2шт.
