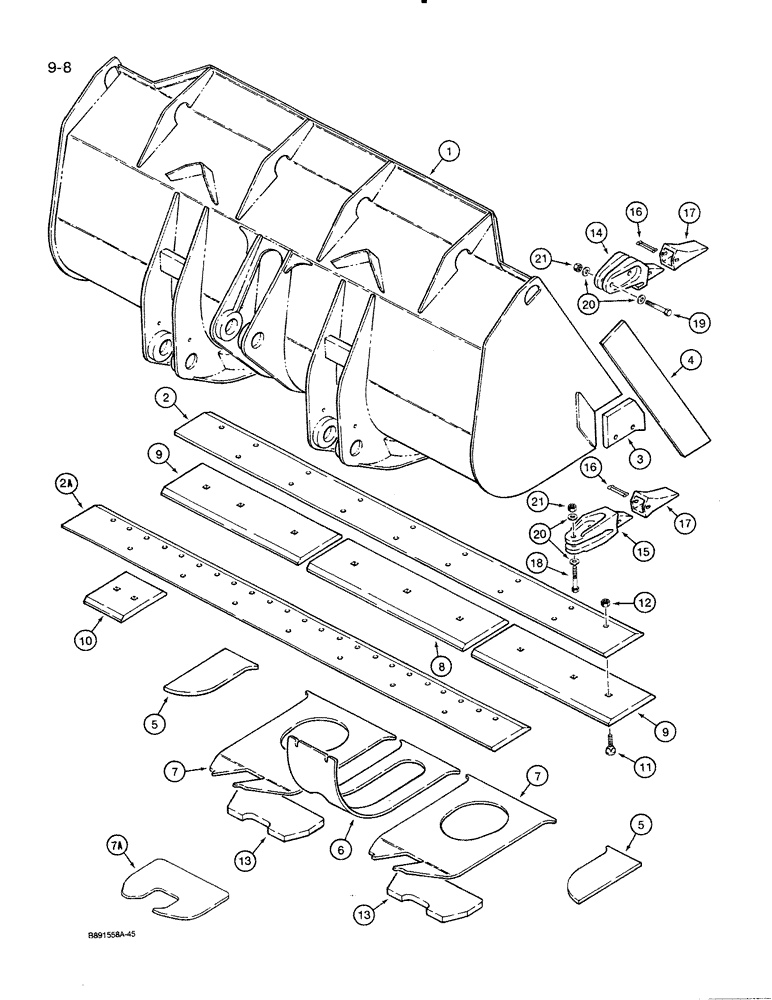

Запчасти Case 821 (9-008) - LOADER BUCKET AND CUTTING EDGES, 3.0 CUBIC YARD (2.3 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

L125155

BUCKET

ASSEMBLY - loader, used with Ref. 8 and 9, bolt-on cutting edges, shown below, no longer used, order L129340, Includes: Ref. 1 - 7

1шт.

L129340

BUCKET ASSEMBLY - loader, order from Machinery Price List used with Ref. 8 and 9, bolt-on cutting edges, shown below, Includes: Ref. 1 - 7

1шт.

L125951

BUCKET

ASSEMBLY - loader, used with Ref. 10, bolt-on cutting edges, shown below, no longer used, order L129340, shown above, Includes: Ref. 1- 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L125135

EDGE, CUTTING

EDGE - cutting, weld-on, part of L125155 bucket, used with Ref. 8 and (2) Ref. 9, bolt-on cutting edges, shown below

1шт.

2

L125985

EDGE, CUTTING

EDGE - cutting, weld-on, part of L129340 bucket, used with Ref. 8 and (2) Ref. 9 bolt-on cutting edges, shown below

1шт.

2a

L125790

EDGE, CUTTING

EDGE - cutting, weld-on, part of L125951 bucket, service option for L125155 or L129340 bucket, used with Ref. 8 and (2) Ref. 9, or (8) Ref. 10, bolt on edges, shown below

1шт.

3

L125136

EDGE, CUTTING

EDGE - cutting, bucket corner, weld-on

2шт.

4

L125132

BLADE

EDGE - cutting, bucket side, weld-on

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer

2шт.

6

L125138

LARGE PLATE

PLATE - wear, center, L125155 or L125951 bucket

1шт.

6

L129357

PLATE

- wear, center, L129340 bucket

1шт.

7

L125137

LARGE PLATE

PLATE - wear, bucket ear, L125155 or L125951 bucket

2шт.

7

L129358

PLATE

- wear, bucket ear, L129340 bucket

2шт.

7a

L127766

LARGE PLATE

PLATE - wear, bucket ear, partial, if used

2шт.

8

L125171

EDGE, CUTTING

EDGE - cutting, center, bolt-on, 1009 mm long, used with (2) Ref. 9, bolt on edges and Ref. 2 or 2A weld-on edge, shown above

1шт.

9

L125172

EDGE, CUTTING

EDGE - cutting, end, bolt-on, 874 mm long, used with Ref. 8, bolt on edge, and Ref. 2 or 2A, weld-on edge, shown above

2шт.

10

L125814

EDGE, CUTTING

EDGE - cutting, bolt-on, 230 mm long, used only with Ref. 2A weld-on edge above

8шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT - plow, 1 NC x 3-1/2 inch, grade 8, on cutting edge

9-16шт.

12

329-1016

NUT,1"-8, G8

Bolt-on cutting edge 1"-8, G8

9-16шт.

13

L125498

LARGE PLATE

PLATE - wear, bucket ear, bolt-on cutting edge

2шт.

L125197

TEETH

TOOTH ASSEMBLY - bucket, corner, teeth, Includes: Ref. 14 - 17

2шт.

R51174

TEETH

TOOTH ASSEMBLY - bucket, center, teeth, Includes: Ref. 14 - 17

7шт.

14

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, part of L125197 tooth assembly, teeth

1шт.

15

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, part of R51174 tooth assembly, teeth

1шт.

16

R29117

PIN, ROLL

PIN - flex, L125197 or R51174 tooth assembly, bucket teeth

1шт.

17

R51388

POINT

- tooth, L125197 or R51174 tooth assembly, bucket teeth

1шт.

18

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

Bucket teeth Hex, 1"-8 x 4", G8

14шт.

19

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

Bucket teeth Hex, 1"-8 x 4 1/2", G8

4шт.

20

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1 inch, hardened, bucket teeth

36шт.

21

329-1016

NUT,1"-8, G8

Bucket teeth 1"-8, G8

18шт.
