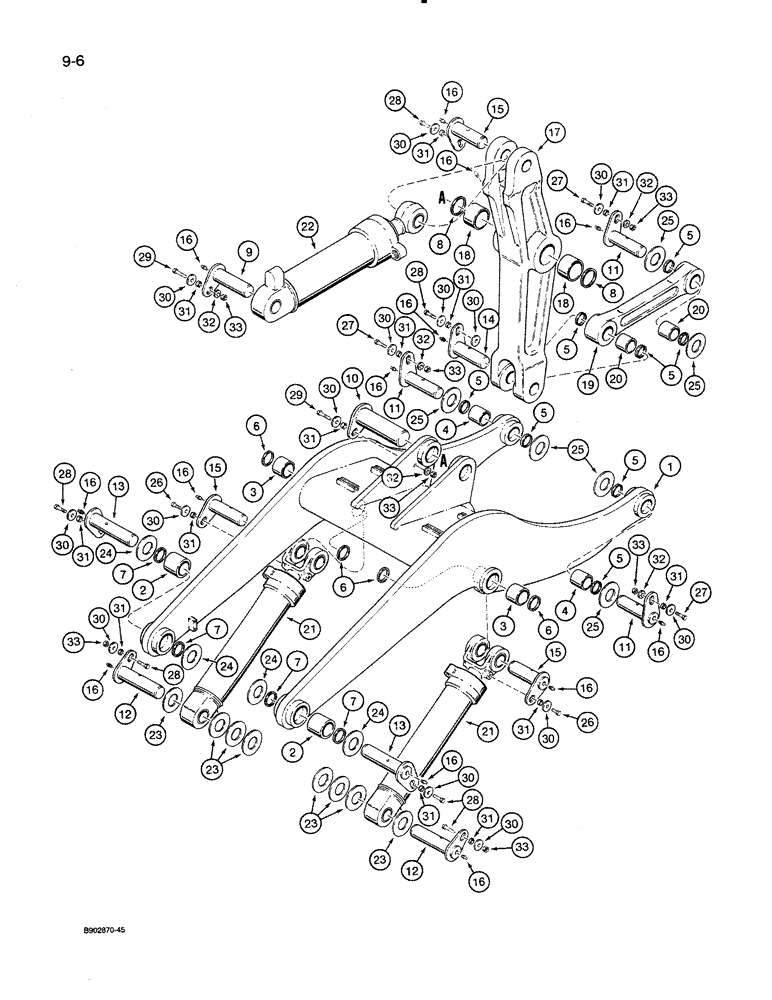

Запчасти Case 821 (9-006) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

L125034

ROCKER ARM

FRAME ASSEMBLY - loader lift, no longer available, order 107022A1 frame assembly, Includes: Ref. 1 - 4

1шт.

107022A1

ROCKER ARM

FRAME ASSEMBLY - loader lift, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

2

L125973

BUSHING,95.41mm ID x 111.25mm OD x 106.5mm L

- loader lift frame, at chassis

2шт.

3

L125974

BUSHING,82.72mm ID x 95.38mm OD x 78mm L

- loader lift frame, at lift cylinder

2шт.

4

L125972

BUSHING,76.38mm ID x 89.03mm OD x 90mm L

- loader lift frame, at bucket

2шт.

5

L128724

SEAL

- wiper, loader lift frame, at bucket and dump link, was D95148

8шт.

6

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

- wiper, loader lift frame, at lift cylinder, was L104363

4шт.

7

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

- wiper, loader lift frame, at chassis

4шт.

8

L125033

SEAL,107.95mm ID x 120.65mm OD x 7.92mm Thk

SEAL - wiper, bellcrank pivot

2шт.

9

L118674

PIVOT PIN

PIN - bucket, Serial Range: cylinder-chassis

1шт.

10

L125016

PIN,107.8mm OD x 367mm L

- bellcrank pivot

1шт.

11

L128351

PIVOT PIN

PIN - loader lift frame and dump, Serial Range: link-bucket

3шт.

12

L125019

PIN,82.39mm OD x 328mm L

- lift cylinder mounting, closed, Serial Range: end-chassis

2шт.

13

L125021

PIN,95.09mm OD x 328mm L

- mounting, loader lift, Serial Range: frame-chassis

2шт.

14

L128351

PIVOT PIN

PIN - loader bucket bellcrank to bucket dump link

1шт.

15

L125176

PIN,82.39mm OD x 240mm L

- bucket cylinder to bellcrank and lift cylinder to loader lift frame

3шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

13шт.

L125013

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket, no longer available, order L130049 bellcrank assembly, Includes: Ref. 17 and 18

1шт.

L130049

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BELLCRANK - loader bucket

1шт.

18

L125971

BUSHING,108.12mm ID x 120.8mm OD x 82mm L

- bellcrank

2шт.

L128196

POWER ARM

LINK ASSEMBLY - bucket dump, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

LINK - loader bucket dump

1шт.

20

L125957

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader bucket dump link

2шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, for correct assembly and components, see Figure 8-046

2шт.

22

1980385C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, parts list Figure 8-048

1шт.

23

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

- flat, special, used as shim between loader lift cylinders and chassis

8шт.

24

L125051

WASHER

- flat, special, used as shim between loader lift frame and chassis

4шт.

25

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 78 x 152 x 4 mm, hardened

6шт.

26

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

27

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

3шт.

28

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

6шт.

29

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

2шт.

30

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, 21/32 x 2-1/2 x 11/64 inch, hardened

14шт.

31

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

13шт.

32

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch, if used

5шт.

33

131-219

LOCK NUT

NUT - hex, self-locking, 5/8 inch NC, plated

7шт.
