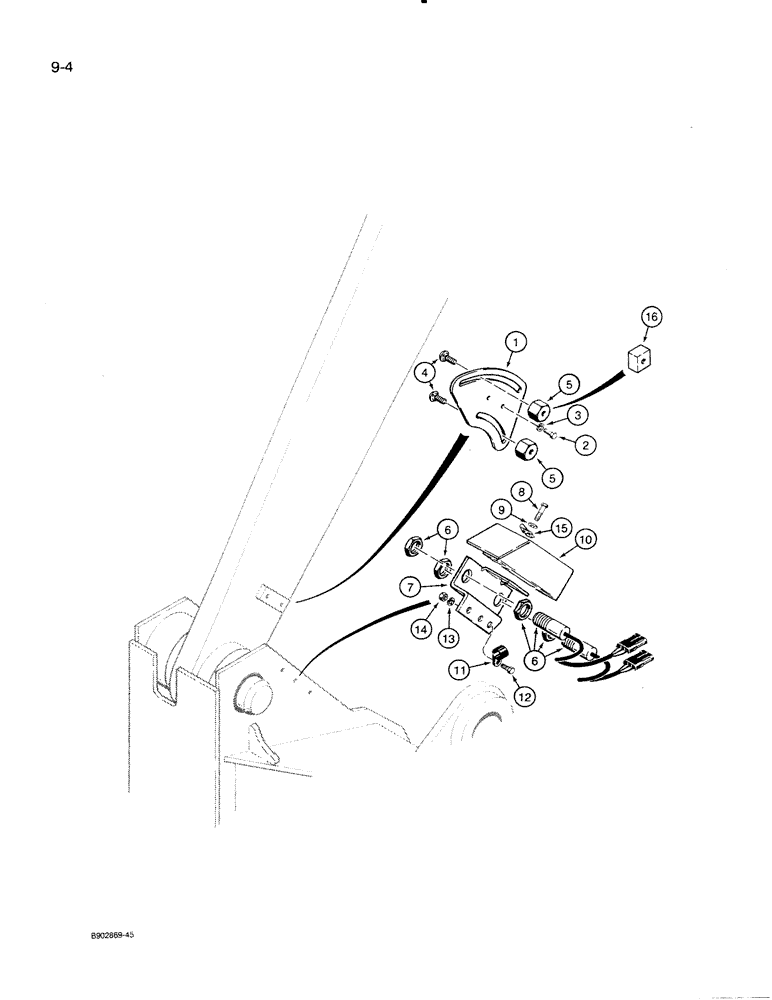

Запчасти Case 821 (9-004) - LOADER BUCKET HEIGHT CONTROL AND, RETURN-TO-TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

L125256

LARGE PLATE

PLATE - mounting, proximity switches

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

111-517

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

5

L123924

ACTIVATOR

ACTUATOR - switch, proximity, hex, no longer used, order Ref. 16, L125976, actuator shown below

2шт.

6

1546498C1

SWITCH

- proximity, height control and return-to-transport, replaces A186283 switch

2шт.

7

L125982

SUPPORT

BRACKET - mounting, proximity switches, was L125257

1шт.

8

187-1520

SCREW,Hex Hd, 3/8" x 5/8"

- hex, self-tapping, 3/8 NC x 5/8 inch, if used

2шт.

8

187-1521

SELF-TAP SCREW,3/8" - 16 x 5/8"

BOLT - hex, 3/8 NC x 3/4 inch, if used

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

10

L125258

COVER

- proximity switches

1шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- front harness, battery cable

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

2шт.

16

L125976

SWITCH

ACTUATOR - switch, proximity, square

2шт.
