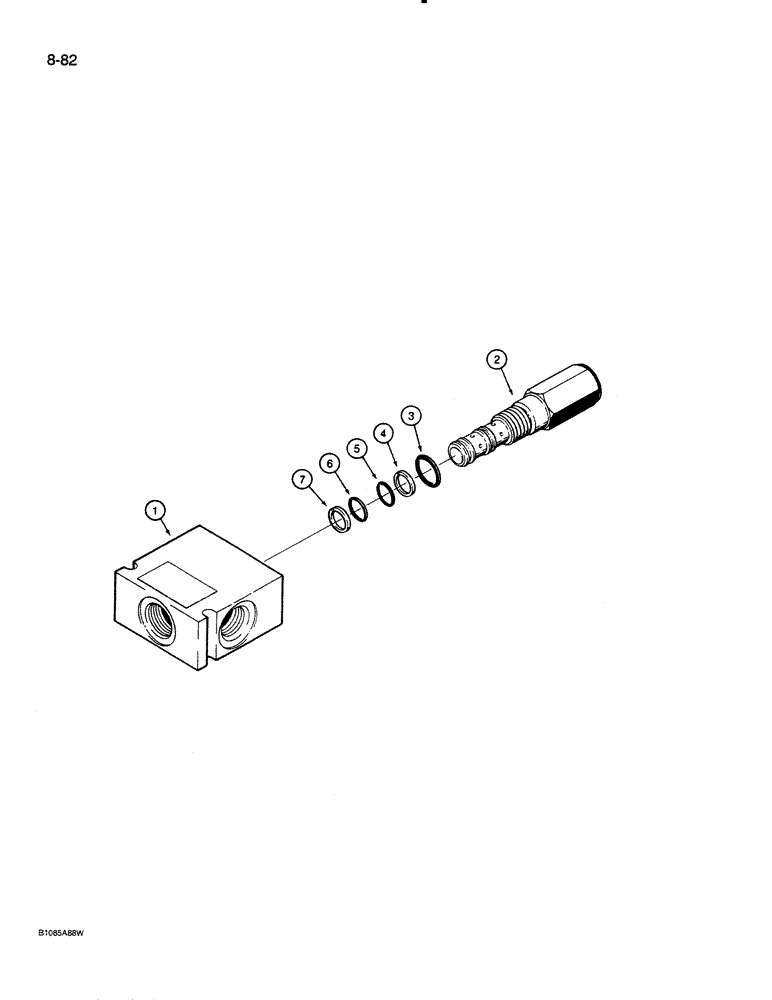

Запчасти Case 821 (8-082) - PRESSURE REDUCING VALVE - L101927 (08) - HYDRAULICS

L101927

VALVE

ASSEMBLY - pressure reducing, Includes: Ref. 1 - 7

1шт.

1

N6523

BODY

- valve

1шт.

N6524

VALVE

RELIEF ASSEMBLY - pressure reducing, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief assembly

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L30012

RING

- seal, backup

1шт.

5

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 inch wide, Class 6

1шт.

6

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 ID x 1/16 inch wide

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, inner

1шт.
