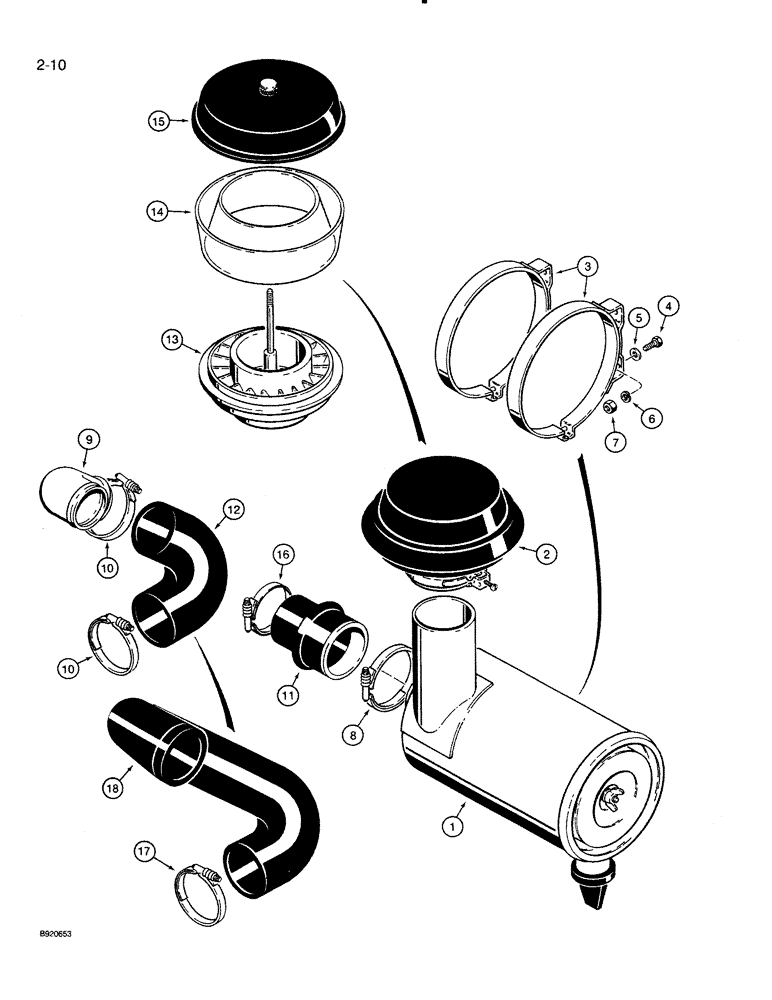

Запчасти Case 821 (2-010) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A184506

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-012

1шт.

2

L24689

CAP

- air cleaner, includes clamp

1шт.

3

S238773

CLAMP

BAND - air cleaner mounting

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

L124802

COLLAR CLAMP

CLAMP - hose to air cleaner, if used

1шт.

9

L125865

AIR INTAKE TUBE,101.6 mm OD x 238, 159 mm L

TUBE - air cleaner, upper, if used

1шт.

10

L127771

CLAMP,107.95mm - 130.18mm

- hose retaining, 4-1/4 x 5-1/8 inch, if used

2шт.

11

L124758

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID x 152.40 mm

- Air Cleaner, If used 101.60 mm ID, 114.30 mm ID x 152.40 mm

1шт.

12

L125193

RADIATOR HOSE,101.60 mm ID x 288.00 mm, SAE J200

- At turbocharger, If used 101.60 mm ID x 288.00 mm, SAE J200

1шт.

R48592

PRECLEANER

ASSEMBLY - air cleaner, if used, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

14

L30671

HOUSING

BOWL - precleaner

1шт.

15

L30669

COVER

- precleaner

1шт.

16

L124635

HOSE CLAMP

CLAMP - hose retaining, 3-3/4 x 4-5/8 inch, if used

1шт.

17

L127771

CLAMP,107.95mm - 130.18mm

- hose retaining, 4-1/4 x 5-1/8 inch, if used

2шт.

18

L129481

INTAKE AIR HOSE,102.00 mm ID, 114.00 mm ID

- Air Cleaner, If used 102.00 mm ID, 114.00 mm ID

1шт.
