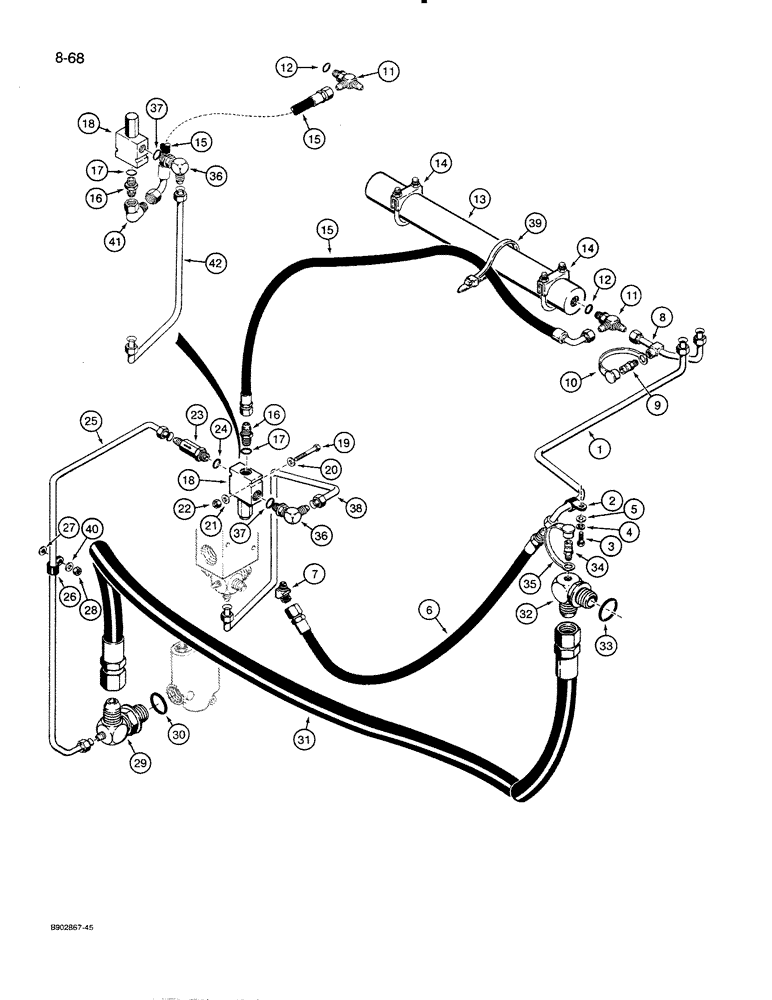

Запчасти Case 821 (8-068) - REMOTE LOADER CONTROL CIRCUIT RETURN TO HYDRAULIC RESERVOIR AND PRESSURE REDUCING VALVE (08) - HYDRAULICS

1

L126571

PIPE,9.52 mm OD

TUBE - hose separator to hose at hydraulic reservoir

1шт.

2

49845

CLAMP

- retaining

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

6

L124336

HOSE

- 600 mm long, tube to hydraulic reservoir

1шт.

7

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

8

L126860

TUBE

- hose, Serial Range: separator-accumulator

1шт.

9

H434164

COUPLING

- quick disconnect

1шт.

10

H434163

DUST CAP

CAP - dust

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 flare base x flare x adj O-ring boss, Includes: Ref. 12

1шт.

13

L118361

ACCUMULATOR

- hydraulic, parts list Figure 8-080

1шт.

14

A13240

CLAMP,2-5/8" ID

- accumulator, includes hardware

2шт.

15

L125330

HOSE

- 823 mm long, pressure reducing, Serial Range: valve-accumulator

1шт.

16

L125752

FITTING

ADAPTER - straight, includes orifice, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

L101927

VALVE

- pressure reducing, parts list Figure 8-082

1шт.

19

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

21

495-81103

WASHER,.266" x 13/16" x .083"

- flat, 17/64 x 13/16 x 3/32 inch

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

2шт.

23

L111010

VALVE

- check, pressure reducing valve, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

L127935

PIPE,9.53" OD x 674, 278" L

TUBE - pressure, pressure reducing valve to flow control valve

1шт.

26

49845

CLAMP

- P type, tube

1шт.

27

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

1шт.

28

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

29

218-5579

TEE,37 Degree, 9/16"-18, 1 5/16"-12, O-Ring Run, 1 5/16"-12

- 1-5/16-12 fl branch x adj O-ring x 9/16-18 inch flare, Includes: Ref. 30

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

31

L125849

HOSE

- 535 mm long, pressure, flow control, Serial Range: valve-pump

1шт.

32

L125817

ELBOW

- 90 degree, special, Includes: Ref. 33

1шт.

33

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

34

H434164

COUPLING

COUPLER - quick disconnect

1шт.

35

H434163

DUST CAP

CAP - dust, coupler

1шт.

36

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch o-ring boss, Incl. Ref. 37

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

38

L125329

PIPE,9.53 mm OD

TUBE - return, pressure reducing valve to bypass valve, no longer used, order Ref. 42, L129033 shown below

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

41

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare, if used

1шт.

42

L129033

PIPE,9.53 mm OD x 264, 127 mm L

TUBE - return, pressure reducing valve to bypass valve

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
