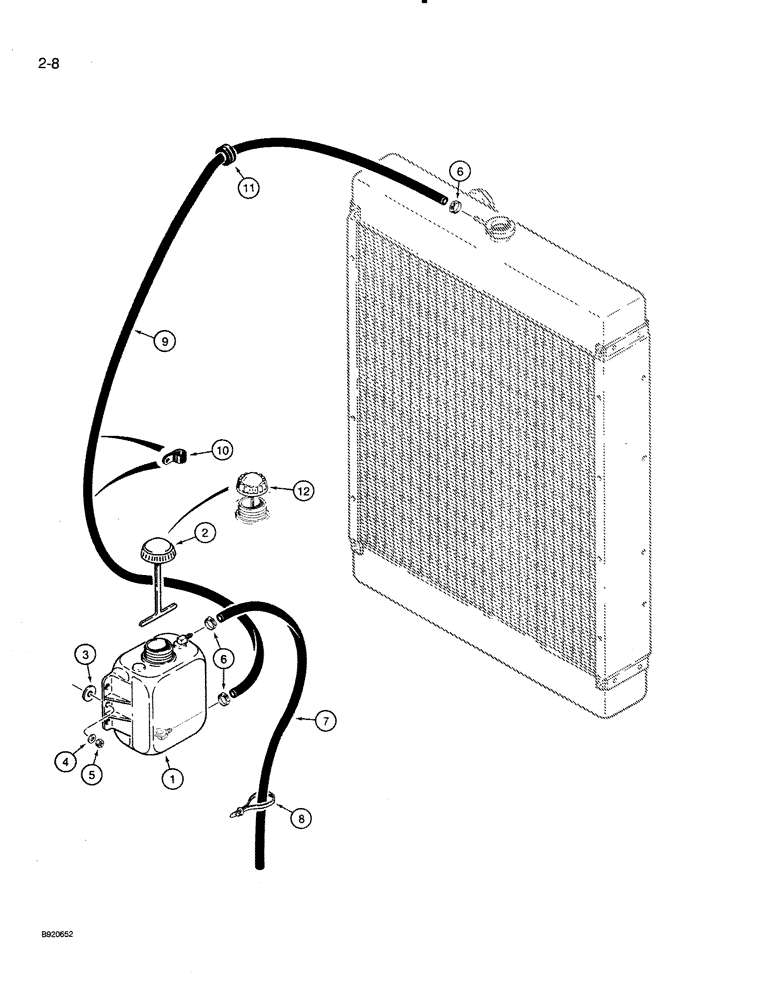

Запчасти Case 821 (2-008) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

103846A1

CONTAINER

RESERVOIR - 3.7 liters, replaces L127093 (3 liter) reservoir

1шт.

2

A184079

CAP

- container, no longer available, order Ref. 12, 1547924C1 cap

1шт.

3

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened, if used

2шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, radiator overflow and drain valve

3шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Reservoir Drain 7.9 mm ID x 1219.00 mm, SAE 30R1

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

L125870

HOSE,7.9 mm ID x 1370.00 mm, SAE 30R6

Radiator to Reservoir 7.9 mm ID x 1370.00 mm, SAE 30R6

1шт.

10

49768

CLIP

- reservoir hose to radiator guard

2шт.

11

H114272

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

- hose

1шт.

12

1547924C1

CAP

- container

1шт.
