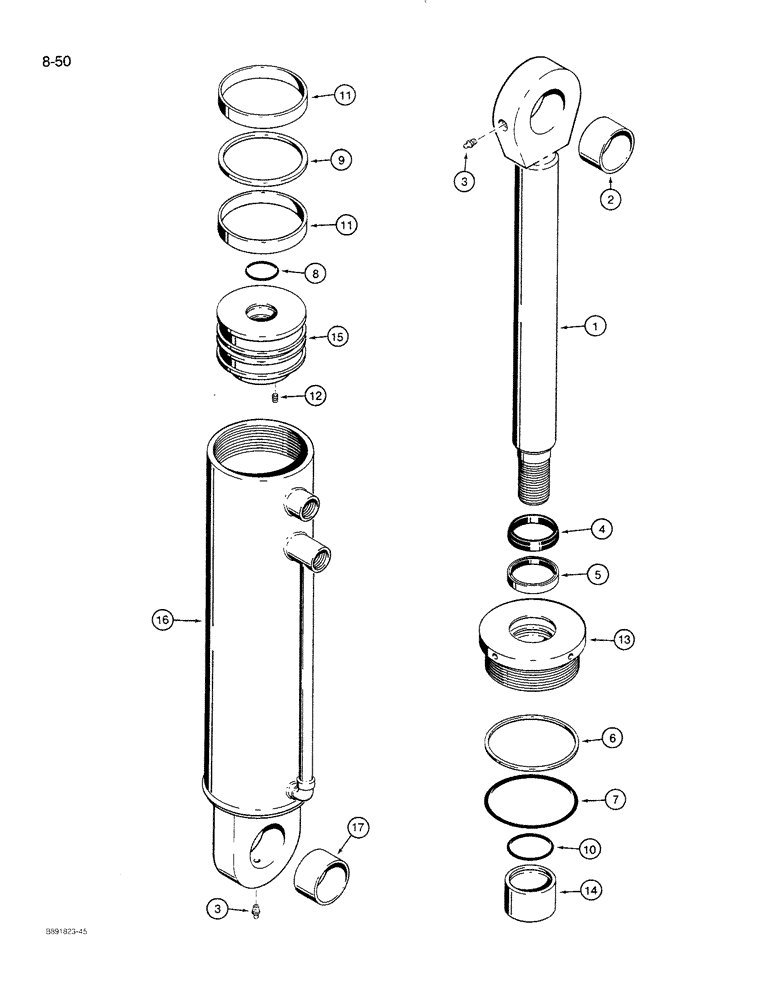

Запчасти Case 821 (8-050) - LOADER AUXILIARY CYLINDER - S301000 (08) - HYDRAULICS

S301000

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5" (127 mm) ID x 14" (356 mm) stroke, auxiliary, Includes: Ref. 1 - 17

2шт.

1

S301008

PISTON ROD

ROD ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

S301015

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

2шт.

S301013

SEAL KIT

KIT- SEAL, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - gland, outer

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - rod to piston, small

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - rod, large

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

12

NSS

NOT SOLD SEPARAT

SETSCREW - piston retaining

1шт.

13

S301010

CYLINDER END CAP

GLAND - cylinder

1шт.

14

S301012

SPACER

- piston

1шт.

15

S301011

JACK PISTON

PISTON - cylinder

1шт.

16

S301007

JACK BODY,18.75" L

TUBE - cylinder, Includes: Ref. 17

1шт.

17

S301015

BUSHING

- tube

1шт.
