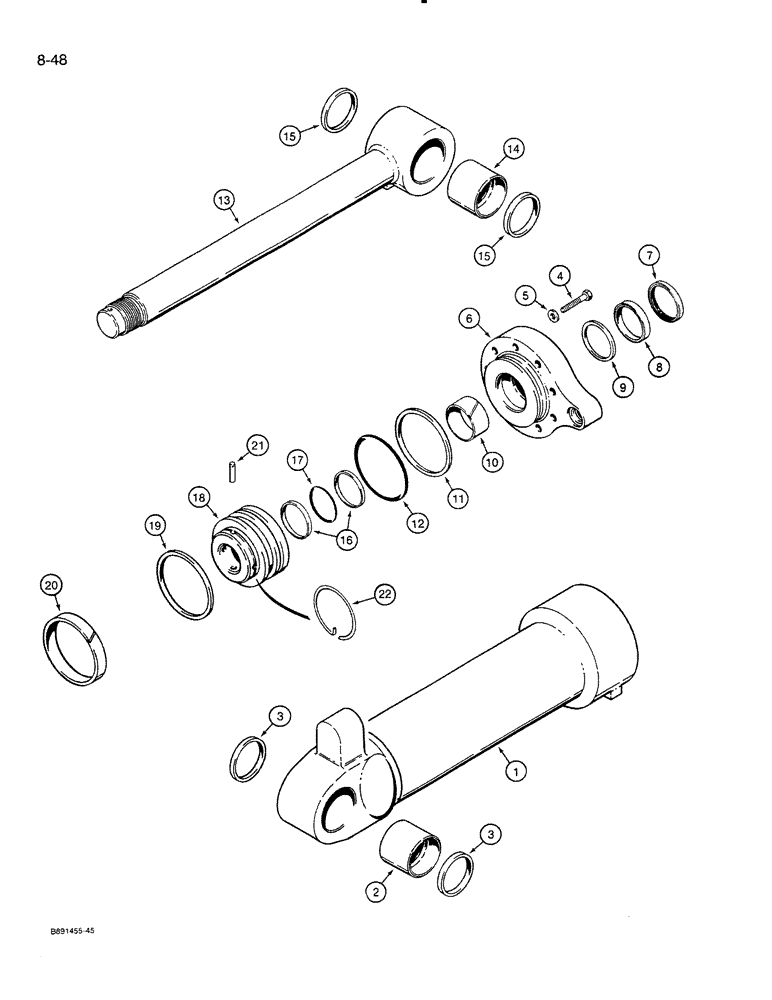

Запчасти Case 821 (8-048) - BUCKET CYLINDER (08) - HYDRAULICS

1980385C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - 7 inch (178 mm) ID x 22-25/32 inch (544 mm) stroke, bucket, Includes: Ref. 1 - 22

1шт.

1

1343663C1

JACK BODY

TUBE - cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- special, flat, hardened

9шт.

1343666C1

BEARING

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

S92653

WIPER

- piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

8

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

9

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- buffer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

10

G110677

HYD CYL SLEEVE

BUSHING -, Serial Range: gland-rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

- backup, gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

12

G110678

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- gland seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

13

1980386C2

PISTON ROD

ROD - 3-1/2 inch (89 mm) diameter, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rod eye

2шт.

16

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

17

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- trunnion, 3 x 3-1/4 x 1/8 inch

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

18

1980389C2

JACK PISTON

PISTON - rod

1шт.

19

S110158

SEAL

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

20

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110651

1шт.

21

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

22

1980390C1

RING, SNAP

RING - retaining, locking pin

1шт.

G110651

SEAL PACKAGE

KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 12, 16, 17, 19 and 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
