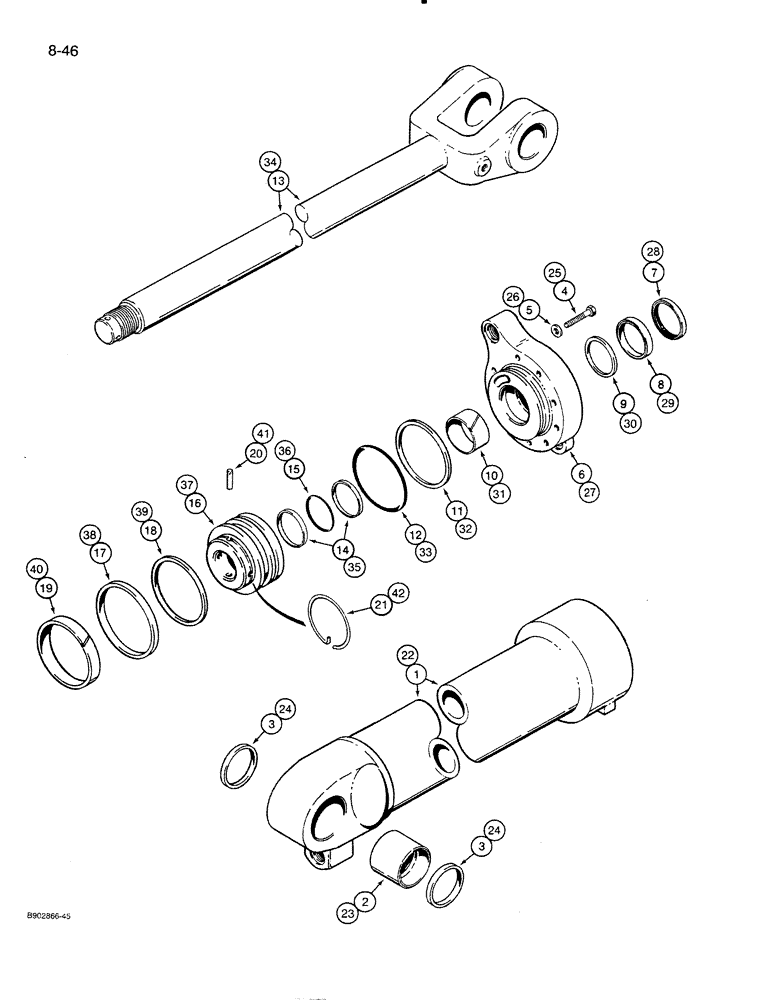

Запчасти Case 821 (8-046) - LIFT CYLINDERS - SEE ROD DIAMETERS (08) - HYDRAULICS

1340743C3

CYLINDER ASSY.

CYLINDER ASSEMBLY - 153 mm ID x 807 mm stroke x 76 mm rod, lift, Includes: Ref. 1 - 21

2шт.

1

G110653

JACK BODY,152.4 mm ID x 1063 mm L

TUBE - cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, 16 x 25 x 2.54 mm, hardened

9шт.

G110527

BEARING

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

12

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

End cover -356, 70 Duro, 5.35" ID x .210" Thk

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

13

1340744C2

PISTON ROD

ROD - 3 inch (76 mm) diameter

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Trunnion -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

16

1343554C1

JACK PISTON

PISTON - rod

1шт.

17

G110330

SEALING RING

SEALRING -, Serial Range: Piston-tube

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

18

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING - Backup, Piston seal

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

19

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of seal, 1340743C3C1 cylinder, kit P/N G110526

1шт.

20

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

21

1980352C1

RING

- retaining, locking pin

1шт.

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

CYLINDER ASSEMBLY - 153 mm ID x 807 mm stroke x 90 mm rod, lift, Includes: Ref. 22 - 42

2шт.

22

1343590C1

JACK BODY

TUBE - cylinder, Includes: Ref. 23

1шт.

23

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

24

L104363

WIPER SEAL

- tube eye

2шт.

25

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

26

G110688

WASHER

- flat, 16 x 25 x 2.54 mm, hardened

9шт.

1986820C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

28

S92653

WIPER

- piston rod

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

29

G109055

SEAL,88.95mm ID x 101.73mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

30

G109030

SEAL,88.32mm ID x 104.44mm OD x 4.9mm Thk

- buffer

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

31

G110677

HYD CYL SLEEVE

BUSHING -, Serial Range: gland-rod

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

32

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

BACKUP-RING - Gland O-ring

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

33

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

End cover -356, 70 Duro, 5.35" ID x .210" Thk

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

34

1986630C1

PISTON ROD

ROD - 3-1/2 inch (90 mm) diameter

1шт.

35

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

36

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Trunnion -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

37

1986633C1

JACK PISTON

PISTON - rod

1шт.

38

G110330

SEALING RING

SEALRING -, Serial Range: Piston-tube

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

39

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING - Backup, Piston seal

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

40

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

RING - wear, Serial Range: piston-tube

1шт.

Part of seal, 1986601C1 cylinder, kit P/N 1986823C1

1шт.

41

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

42

1980390C1

RING, SNAP

RING - retaining, locking pin

1шт.

G110526

SEAL PACKAGE

KIT - seal, 1340743C3 cylinder, Includes Refs. 6, 7, 8, 9, 10, 11, 12, 14, 15, 17, 18 and 19

1шт.

1986823C1

SEAL KIT

KIT - seal, 1986601C1 cylinder, Includes Refs. 28, 29, 30, 31, 32, 33, 35, 36, 38, 39 and 40

1шт.
