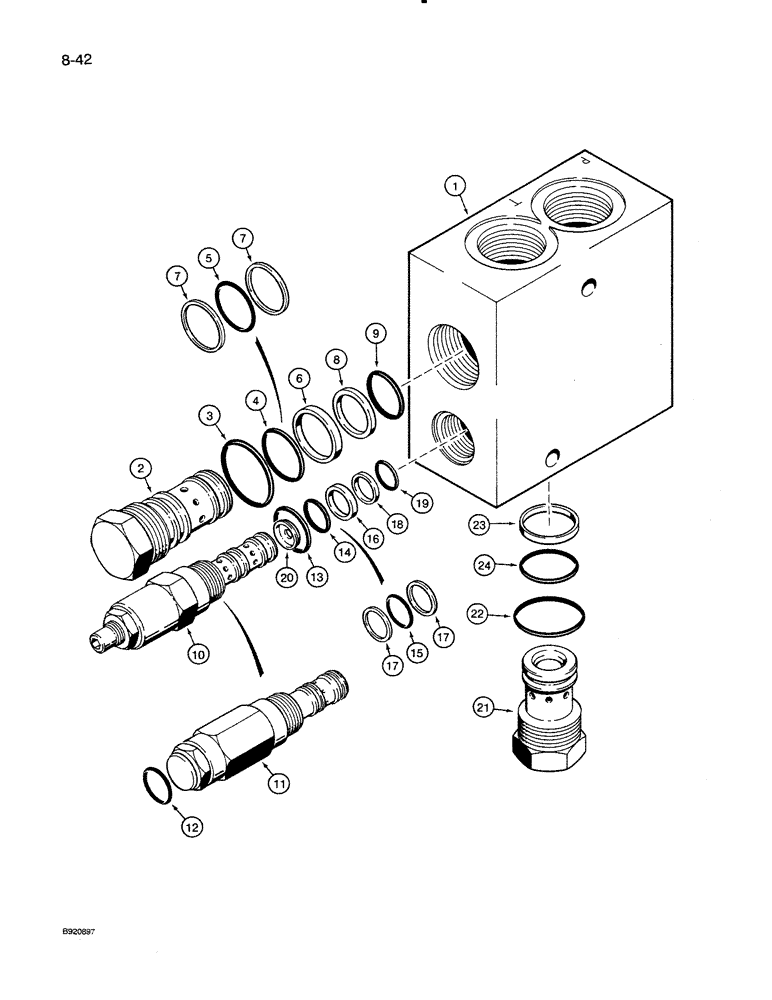

Запчасти Case 821 (8-042) - UNLOADING VALVE (08) - HYDRAULICS

L125998

VALVE

ASSEMBLY - unloading, no longer used, order 101513A1 valve assembly, Includes: Ref. 1 - 24

1шт.

101513A1

VALVE

ASSEMBLY - unloading, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

S300969

VALVE

- relief, L125998 unloading valve, individual components not serviced separately, Includes: Ref. 2 - 9

1шт.

110901A1

VALVE

- relief, 101513A1 unloading valve, individual components not serviced separately, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, S300969 relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, 110901A1 relief valve

1шт.

S300970

SEAL KIT

KIT - seal, S300969 relief valve, Includes: Ref. 3 - 9

1шт.

110902A1

SEAL KIT

KIT - seal, 110901A1 relief valve, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - medium, S300970 seal kit

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - medium, 110902A1 seal kit

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring, S300970 seal kit

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring, 110902A1 seal kit

2шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

S300971

VALVE

- sequence, L125998 unloading valve, individual components not serviced separately, Includes: Ref. 10 - 19

1шт.

110903A1

VALVE

- sequence, 101513A1 unloading valve, individual components not serviced separately, Includes: Ref. 10 - 19

1шт.

10

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, S300971 sequence valve

1шт.

11

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, 110903A1 sequence valve

1шт.

S300972

SEAL KIT

KIT - seal, S300971 sequence valve, Includes: Ref. 12 - 19

1шт.

110904A1

SEAL KIT

KIT - seal, 110903A1 sequence valve

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - outer end, 110904A1 seal kit only

1шт.

Not supplied with Seal Kit #110904A1, the number for the missing O-ring is P/N 237-6006. dimensions are .468-ID and .078-thickness.

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - medium, S300972 seal kit

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - medium, 110904A1 seal kit

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring, S300972 seal kit

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, medium O-ring, 110904A1 seal kit

2шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

20

S300973

DISC

ORIFICE - disc, sequence valve, used with S300971 sequence valve only

1шт.

S300974

VALVE

- check, individual components not serviced separately, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

S300975

SEAL KIT

KIT - seal, check valve, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.
