Запчасти Case 821 (2-006) - FAN AND FAN BELTS (02) - ENGINE

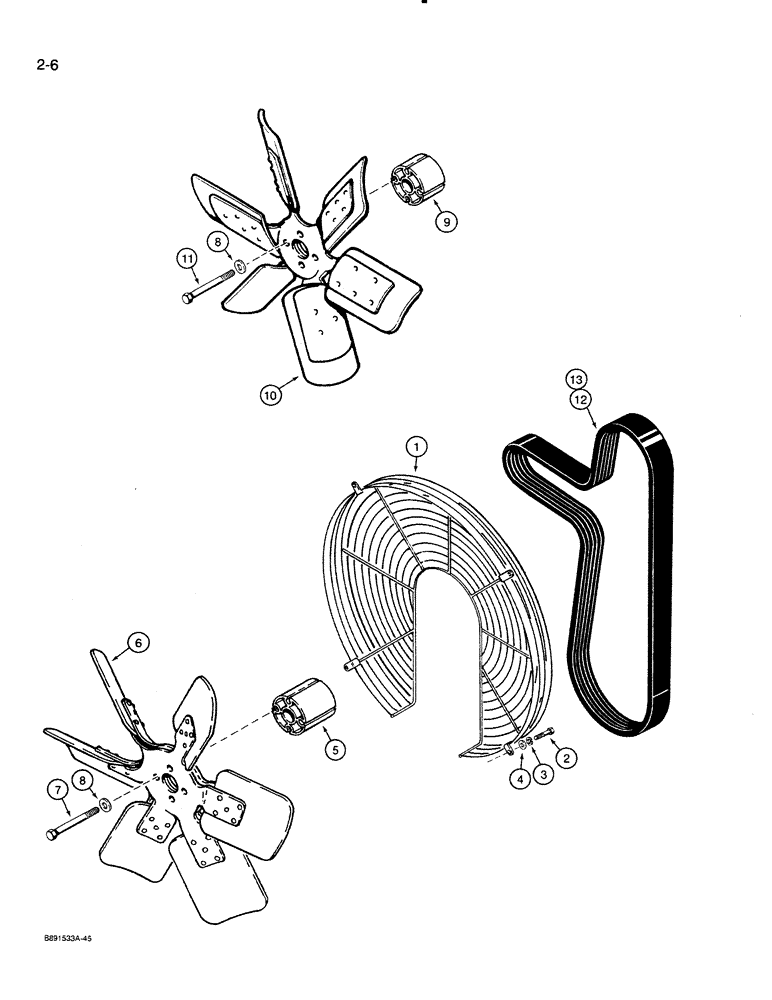

Схема запчастей Case 821 - (2-006) - FAN AND FAN BELTS (02) - ENGINE
12
10
13
2
11
6
3
8
4
9
1
5
8
7

Артикул

Название

Примечание

Количество

1

A189034

SIEVE

GUARD - fan (For both std. and Air Conditioned units)

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

5

A184524

SPACER

- fan, 80 mm long, 101704A1 pusher fan

1шт.

6

101704A1

FAN,6 Blades, 653.2mm OD

- pusher

1шт.

7

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, M10 x 120, 101704A1 pusher fan

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

9

A184549

SPACER

- fan, 100 mm long, A173576 suction fan, no longer used, order A184548 spacer and Ref. 11, 814-10130 bolt

1шт.

9

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long, A173576 suction fan, use Ref. 11, 814-10130 bolt

1шт.

10

A173576

VENTILATOR

FAN - suction, if used

1шт.

11

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm, A184548 spacer and A173576 suction fan, if used

4шт.

11

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

A184549 spacer and A173576 suction fan, if used Hex, M10 x 140, 8.8

4шт.

12

J911561

BELT,27.92mm W x 1663.7mm L, 8 Ribs

Fan, 45 Amp Alternator 3.56 mm W x 1663.70 mm L, 8 Ribs

1шт.

13

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan, Used with 65 Amp Alternator 3.56 mm W x 1701.80 mm L, 8 Ribs

1шт.

Выбрано товаров: 15
