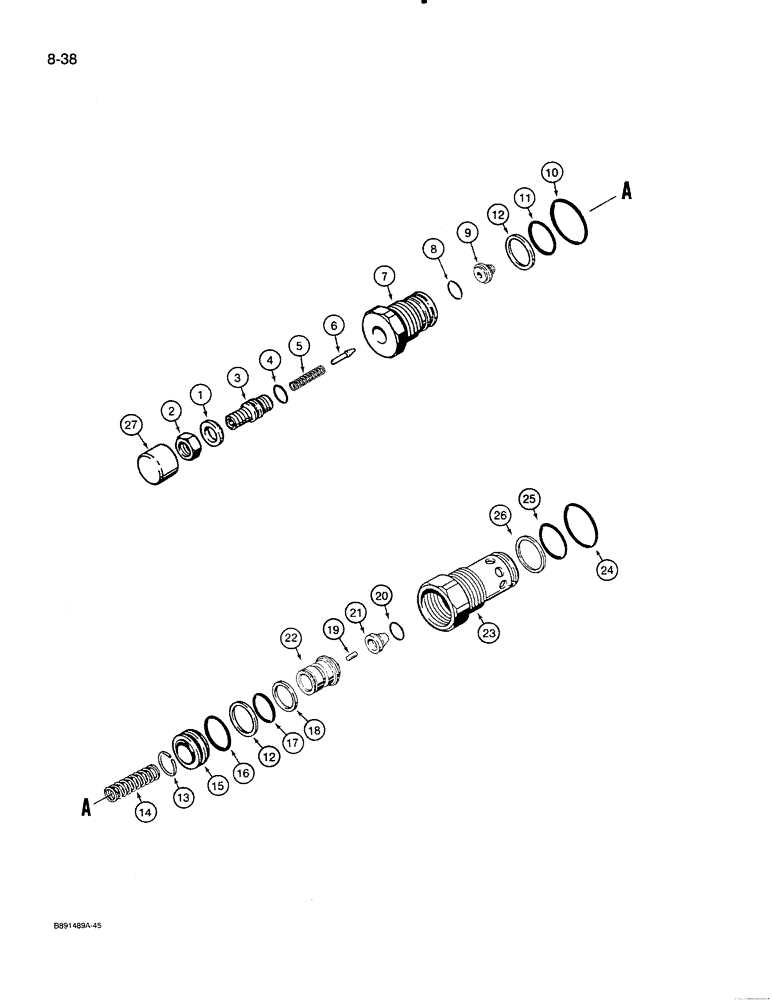

Запчасти Case 821 (8-038) - CIRCUIT RELIEF AND ANTICAVITATION VALVE - S300877 (08) - HYDRAULICS

S300877

VALVE

ASSEMBLY - circuit relief and anticavitation, loader control valve, Includes: Ref. 1 - 27

1шт.

1

N9475

WASHER

- valve

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

3

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

4

S300247

SEAL,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING - adjusting screw

1шт.

Part of seal kit P/N S301665

1шт.

5

N9465

SPRING

- plunger

1шт.

6

N9464

PLUNGER

- relief valve

1шт.

S300893

PLUNGER ASSY.

BODY ASSEMBLY - pilot plunger, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - pilot plunger

1шт.

8

S300900

O-RING,0.364" ID x 0.07" Width

- shaft

1шт.

Part of seal kit P/N S301665

1шт.

9

S300898

SPRING SEAT

SEAT - pilot

1шт.

10

S300908

WIPER SEAL

O-RING - plunger body, large

1шт.

Part of seal kit P/N S301665

1шт.

11

S300243

GASKET

O-RING - plunger body, small

1шт.

Part of seal kit P/N S301665

1шт.

12

A25298

RING

-backup, O-ring

2шт.

Part of seal kit P/N S301665

1шт.

13

S300909

RING, SNAP

RING - retaining, poppet sleeve

1шт.

14

S300890

SPRING

- poppet

1шт.

15

N9461

SPACER

SLEEVE - poppet

1шт.

16

S300243

GASKET

O-RING - sleeve

1шт.

Part of seal kit P/N S301665

1шт.

17

S300891

WIPER SEAL

O-RING - poppet

1шт.

Part of seal kit P/N S301665

1шт.

18

N9470

GASKET

RING - backup, poppet O-ring

1шт.

Part of seal kit P/N S301665

1шт.

19

S300912

PIN

- Filter

1шт.

S300910

RACE

POPPET ASSEMBLY - relief valve, Includes: Ref. 20 22

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - relief filter

1шт.

Part of seal kit P/N S301665

1шт.

21

S300897

FILTER

- relief

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

Part of seal kit P/N S301665

1шт.

25

S300888

WIPER SEAL

O-RING - body, small

1шт.

Part of seal kit P/N S301665

1шт.

26

S300889

GASKET

RING - backup, small O-ring

1шт.

Part of seal kit P/N S301665

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.

S301665

SEAL KIT

KIT - seal, Includes Refs.4, 8, 10, 11, 12, 16, 17, 18, 20, 24, 25 and 26

1шт.
