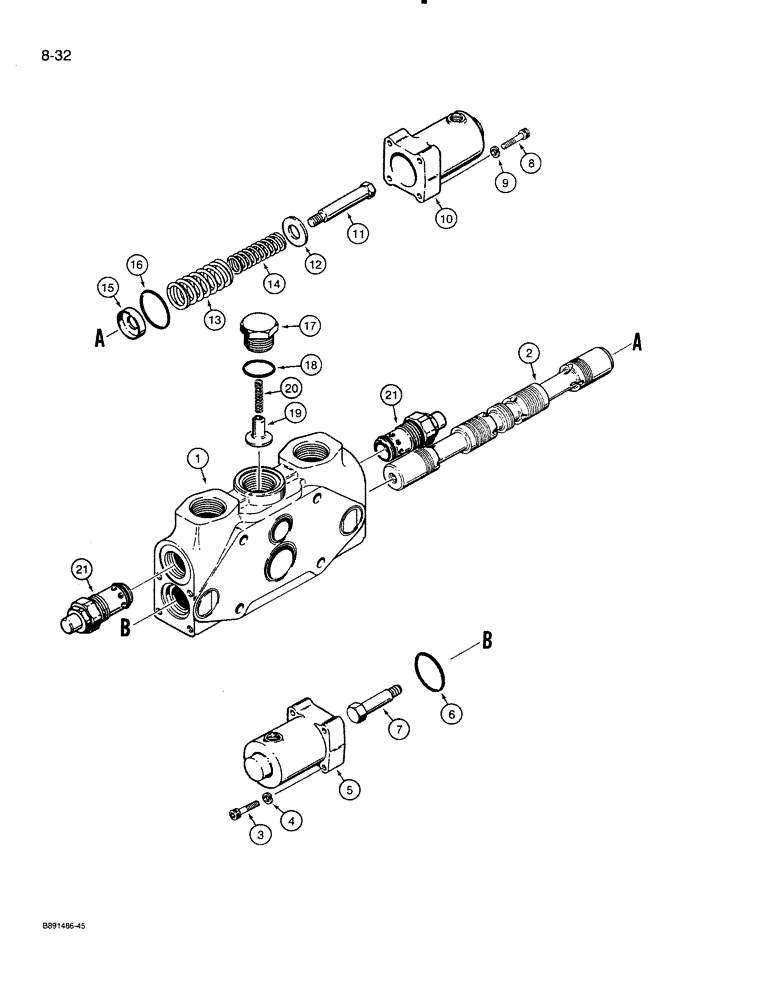

Запчасти Case 821 (8-032) - LOADER AUXILIARY SECTION - S300871 (08) - HYDRAULICS

S300871

VALVE

SECTION ASSEMBLY - loader auxiliary, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - auxiliary section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary section

1шт.

3

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

BOLT - hex socket head, 1/4 NC x 1-1/2 inch

4шт.

4

192-402

LOCK WASHER

WASHER - lock, 1/4 inch

4шт.

5

N9447

COVER

CAP - spring

1шт.

6

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- cap

1шт.

7

N9480

BOLT

- spool guide

1шт.

8

61-424

HEX SOC SCREW,1/4"-20 x 1 1/2"

BOLT - hex socket head, 1/4 NC x 1-1/2 inch

4шт.

9

192-402

LOCK WASHER

WASHER - lock, 1/4 inch

4шт.

10

N9447

COVER

CAP - spring

1шт.

11

N9480

BOLT

- spool positioner

1шт.

12

N9451

SPACER

- spring retainer

1шт.

13

N9481

SPRING

- spool positioner, large

1шт.

14

N9482

SPRING

- spool positioner, small

1шт.

15

N9483

SPACER

- spring

1шт.

16

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- 1-1/2 ID x 3/32 inch wide, cap

1шт.

17

N9455

PLUG

- load check

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

19

N9456

PIN

POPPET - load check

1шт.

20

D28840

SPRING

- load check

1шт.

21

S300877

VALVE

ASSEMBLY - circuit relief and anticavitation, parts list Figure 8-038

2шт.
