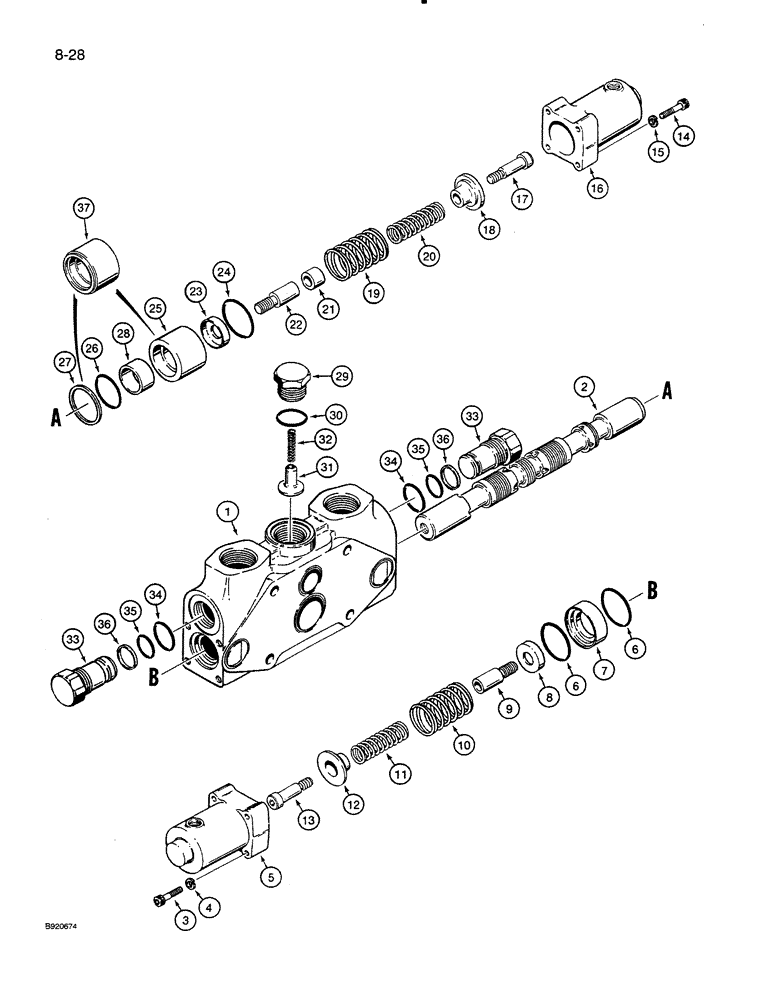

Запчасти Case 821 (8-028) - LOADER LIFT SECTION - S300881 (08) - HYDRAULICS

S300881

VALVE BLOCK

SECTION ASSEMBLY - lift, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

3

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

BOLT - hex socket head, 1/4 NC x 2-1/4 inch

4шт.

4

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

5

N9447

COVER

CAP - spring

1шт.

6

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- cap

2шт.

7

N9448

SPACER

- cap, no longer available, order 104826A1 spacer

1шт.

7

104826A1

SPACER

- cap, with O-ring retaining rim

1шт.

8

N9443

SPACER

RETAINER - spring, inner

1шт.

9

S300266

EXTENSION

- spool

1шт.

10

S300270

SPRING

- spool positioner, large

1шт.

11

S300269

SPRING

- spool positioner, small

1шт.

12

S300268

SEAT

- spring, retainer

1шт.

13

S300267

SCREW

BOLT - spool guide

1шт.

14

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4 NC x 3 inch

4шт.

15

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

16

N9447

COVER

CAP - spring

1шт.

17

S300267

SCREW

BOLT - spool guide

1шт.

18

S300268

SEAT

- spring, retainer

1шт.

19

S300270

SPRING

- spool positioner, large

1шт.

20

S300269

SPRING

- spool positioner, small

1шт.

21

S300272

SPACER

SLEEVE - bolt

1шт.

22

S300266

EXTENSION

- spool

1шт.

23

N9443

SPACER

- spring

1шт.

24

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

- cap

1шт.

25

N9450

SPACER

- cap, no longer available, order 104825A1 spacer, Ref. 37

1шт.

26

S300271

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- cap spacer

1шт.

27

N9454

RING

SPACER - seal, no longer available, order 104825A1 spacer, Ref. 37

1шт.

28

N9449

SLEEVE

- cap spacer

1шт.

29

N9455

PLUG

- load check

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

31

N9456

PIN

POPPET - load check

1шт.

32

D28840

SPRING

- load check

1шт.

N9478

PLUG

ASSEMBLY - no relief, Includes: Ref. 33 - 36

2шт.

33

NSS

NOT SOLD SEPARAT

PLUG - lift section

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

35

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- 15/16 ID x 1/16 inch wide, plug

1шт.

36

N9459

BACK-UP RING

- backup, small O-ring

1шт.

37

104825A1

SPACER

- cap, replaces Ref 25 and 27

1шт.
