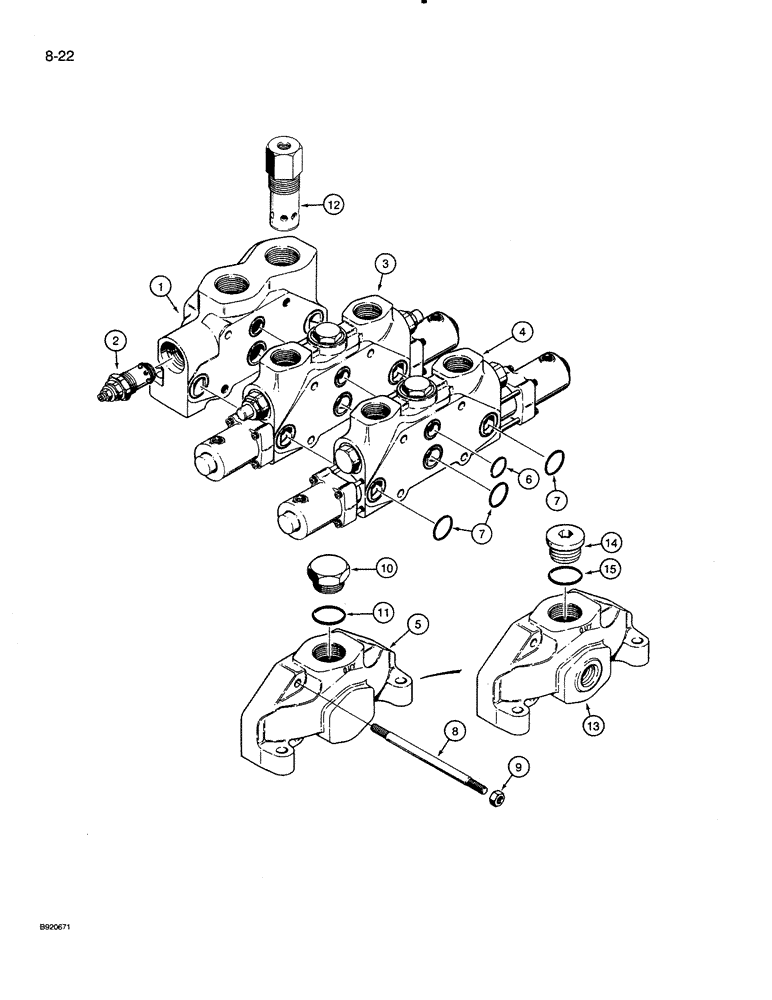

Запчасти Case 821 (8-022) - LOADER CONTROL VALVE - TWO SPOOL (08) - HYDRAULICS

L126100

VALVE

ASSEMBLY - loader control, two spool, Includes: Ref. 1 - 12

1шт.

1

S300884

VALVE BLOCK

SECTION - end, inlet and outlet

1шт.

2

S300885

VALVE

ASSEMBLY - main relief, parts list Figure 8-036

1шт.

3

S300880

VALVE BLOCK

SECTION ASSEMBLY - bucket, parts list Figure 8-030

1шт.

4

S300881

VALVE BLOCK

SECTION ASSEMBLY - lift, parts list Figure 8-028

1шт.

5

N9484

COVER

PLATE - end cover

1шт.

6

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

Between sections, small (Replaces 238-5026) -124, 90 Duro, 1.237" ID x .103" Thk

3шт.

7

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

Between sections (Replaces 238-5029) -128, 90 Duro, 1.487" ID x .103" Thk

9шт.

8

N9486

BOLT

BOLT - tie, special

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

10

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

- hex, 1-7/8 NF, Includes: Ref. 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

12

S300886

VALVE

ASSEMBLY - low pressure, parts list Figure 8-034

1шт.

L36349

KIT

- power beyond, if used, includes instructions, Includes: Ref. 13 - 15

1шт.

13

S301816

COVER

- outlet, power beyond kit

1шт.

14

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 15, power beyond kit

1шт.

15

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch,power beyond kit

1шт.
