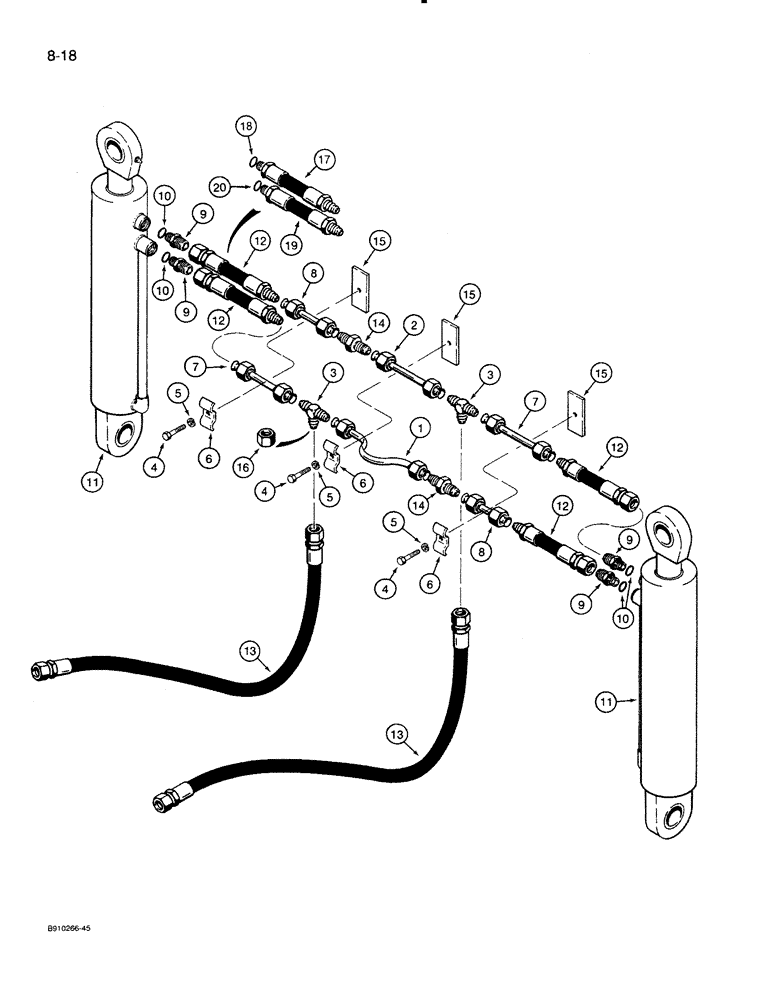

Запчасти Case 821 (8-018) - HYDRAULIC CIRCUIT, AUXILIARY CYLINDERS TO CLAM BUCKET (08) - HYDRAULICS

1

S301002

PIPE

TUBE - auxiliary cylinder hydraulics, lower center

1шт.

2

S301003

PIPE

TUBE - auxiliary cylinder hydraulics, upper center

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare, to auxiliary cylinders

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

R15257

CLAMP

- tube support

3шт.

7

S301001

PIPE

TUBE - auxiliary cylinder hydraulics, upper right-hand and lower left-hand

2шт.

8

S301004

PIPE

TUBE - auxiliary cylinder hydraulics, upper left-hand and lower right-hand

2шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, if used, Incl. Ref. 10

4шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

S301000

CYLINDER ASSY.

CYLINDER ASSEMBLY - auxiliary, parts list Figure 8-050

2шт.

12

S300999

HOSE

- auxiliary cylinder, no longer available, order Ref. 17, S301052, or Ref. 19, S301053 hose shown below

4шт.

13

S301054

HYDRAULIC HOSE

HOSE - auxiliary cylinder tee to tubes at loader arm cross tube, 73-1/2 inch long, 3/4 inch female x 1 inch female ends

2шт.

14

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16 - 12 inch flare

2шт.

15

S300779

SUPPORT

BLOCK - tapped

3шт.

16

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 3/4 inch tube OD x 1-1/16 NF, if used

2шт.

17

S301052

HOSE ASSY.

HOSE - at auxiliary cylinder, rod end, 17-1/4 inch long, if used, Includes: Ref. 18

2шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

S301053

HOSE ASSY.

HOSE - at auxiliary cylinder, closed end, 16-1/2 inch long, if used, Includes: Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
