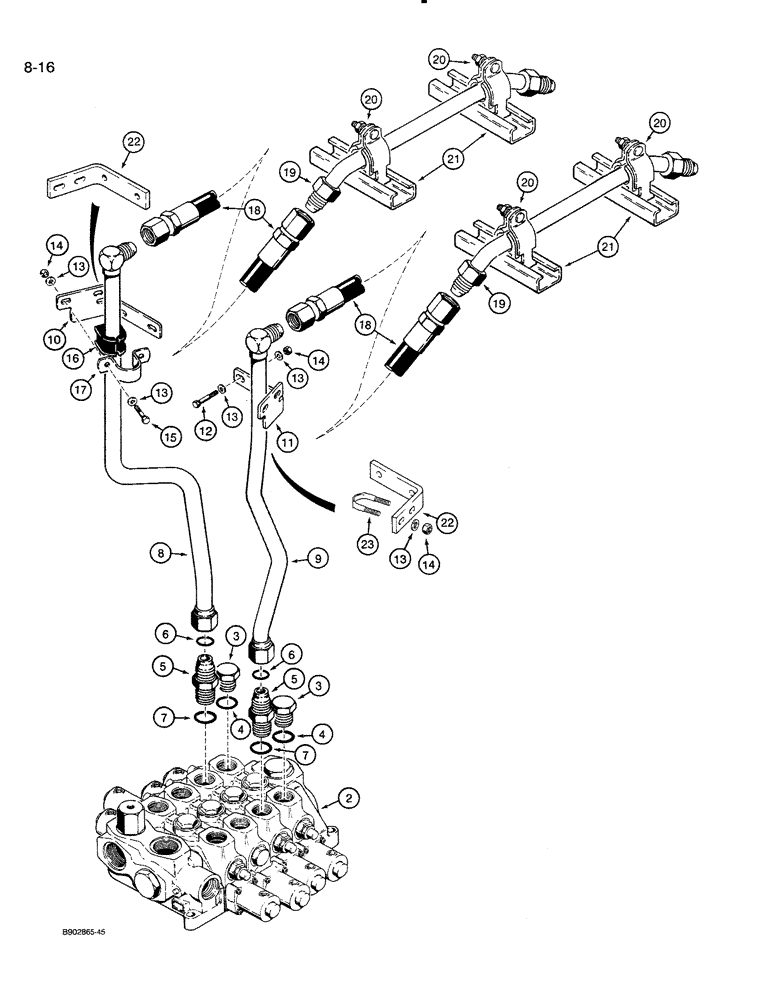

Запчасти Case 821 (8-016) - AUXILIARY HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (08) - HYDRAULICS

1

L126101

VALVE

ASSEMBLY - control, three spool, not shown, parts list Figure 8-024, if used

1шт.

2

L126102

VALVE

ASSEMBLY - control, four spool, parts list Figure 8-026, if used

1шт.

3

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8 inch O-ring boss, use to plug ports of fourth valve section on units with four spool valve, Includes: Ref. 4

2шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

L124289

CONNECTOR, ELEC

ADAPTER - straight, 1-5/8 inch O-ring flare x O-ring boss, Includes: Ref. 6 and 7

2шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Boss end

1шт.

7

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- 1.114 ID x .070 wide, face seal end

1шт.

8

L125734

TUBE,31.75 mm OD

- left-hand, auxiliary section to hose

1шт.

9

L125732

TUBE,31.75 mm OD

- right-hand, auxiliary section to hose

1шт.

10

L125750

SUPPORT

BRACKET - left-hand, tube mounting, front frame, no longer used, order Ref. 22, L129435 bracket, Ref. 23, L129257 U-bolt, (2) Ref. 13, 495-21044 washers and (2) Ref. 14, 131-217 nuts

1шт.

11

L125747

SUPPORT

BRACKET - right-hand, tube mounting, front frame, no longer used, order Ref. 22, L129435 bracket, Ref. 23, L129257 U-bolt, (2) Ref. 13, 495-21044 washers and (2) Ref. 14, 131-217 nuts

1шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 UNC x 1-3/4 inch

4шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8-16шт.

14

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

8шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

4шт.

16

D67298

INSULATOR

- 1-1/4 inch, tube, if used

2шт.

17

L124293

MOUNTING CLIP

CLAMP - tube, auxiliary bucket cylinder, if used

2шт.

18

L125746

HOSE

- 1425 mm long, tube at loader valve to tube on lift arm

2шт.

19

L125736

PIPE,31.75 mm OD x 480, 277 mm L

TUBE - left and right-hand, at loader arm

2шт.

20

S93266

CLAMP

- tube, includes hardware

4шт.

21

S98413

SUPPORT

BRACKET - 5 inch long, welded on

4шт.

22

L129435

SUPPORT

BRACKET - tube mounting, if used

2шт.

23

L129257

U-BOLT

- tube retaining, if used

2шт.
