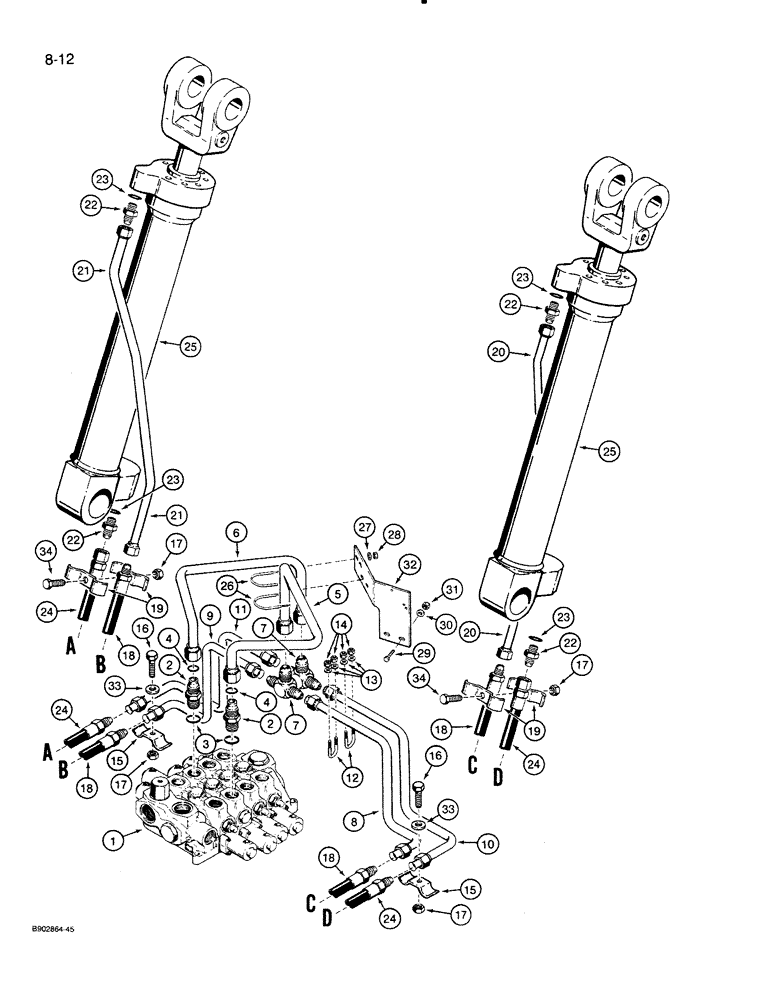

Запчасти Case 821 (8-012) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, see Figures 8-022 - 8-026 for correct valve assembly and components

1шт.

2

L124289

CONNECTOR, ELEC

ADAPTER - straight, 1-5/8 inch O-ring flare x O-ring boss, Includes: Ref. 3 and 4

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- 1.114 ID x .070 wide, flare end

1шт.

5

L125377

PIPE,31.75 mm OD x 422, 268 mm L

TUBE - supply, right-hand, valve

1шт.

6

L125375

PIPE,31.75 mm OD

TUBE - supply, left-hand, valve

1шт.

7

218-603

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12, Br

- 1-5/16-12 x 1-5/8-12 inch flare

2шт.

8

L125381

PIPE,25.4 mm OD

TUBE - lift, right-hand rod end

1шт.

9

L125385

PIPE,25.4 mm OD

TUBE - lift, left-hand rod end

1шт.

10

L125379

PIPE,25.4 mm OD

TUBE - lift, right-hand closed end

1шт.

11

L125383

PIPE,25.4 mm OD

TUBE - lift, left-hand closed end

1шт.

12

L126003

U-BOLT

- 1 inch dia, if used

2шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

4шт.

14

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, if used

4шт.

15

R15257

CLAMP

- tube

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

17

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

18

L125345

HOSE

- 1400 mm long

2шт.

19

D137643

SHIN

CLAMP - hose

4шт.

20

L125367

PIPE,25.4 mm OD

TUBE - right-hand, cylinder rod end

1шт.

21

L125387

PIPE,25.4 mm OD

TUBE - left-hand, cylinder rod end

1шт.

22

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch thread, Incl. Ref. 23

4шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

24

L125389

HOSE

- 1425 mm long, cylinder closed end

2шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, for correct assembly and components, see Figure 8-046

2шт.

26

L104253

U-BOLT

- 1-3/8 inch diameter, if used

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

4шт.

28

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, if used

4шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, if used

2шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), if used 3/8"

2шт.

31

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, if used

2шт.

32

L128070

SUPPORT

BRACKET - tube support, if used

1шт.

33

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8 inch, hardened

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.
