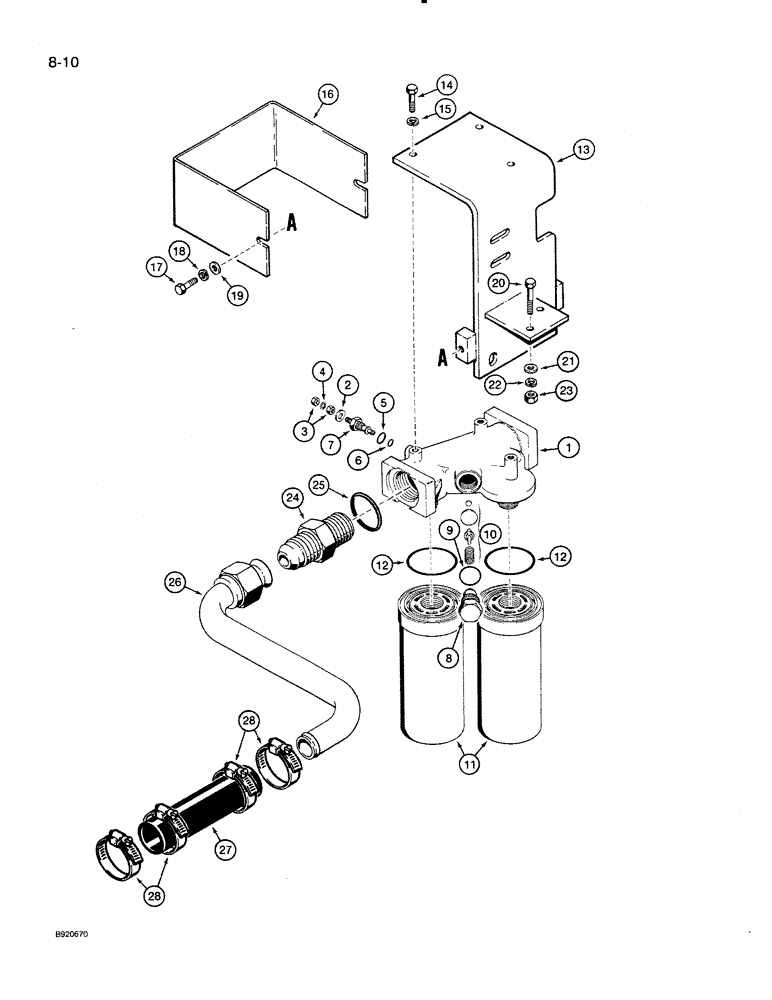

Запчасти Case 821 (8-010) - HYDRAULIC CIRCUIT, OIL FILTER TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification, red-white color

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, order N13268 assembly

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - hex, bypass valve retaining

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - bypass, 50 psi, order L126373 filter assembly

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT - filter replacement, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter, order N9025 element assembly

1шт.

12

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- element

1шт.

13

L126230

BRACKET

- mounting, filter

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

L126231

PROTECTOR

GUARD - filter

1шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

21

R24323

WASHER

- flat, 13.5 x 25 x 4.5 mm, hardened

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

23

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

24

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 inch flare x O-ring boss, Includes: Ref. 25

1шт.

25

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

26

L126401

PIPE,38.09 mm OD x 373, 262 mm L

TUBE - formed, filter to hydraulic reservoir, was L125506

1шт.

27

L127301

HOSE,38.1 mm ID x 230.00 mm

1шт.

28

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, includes screw 1.25/2.125 HD Worm

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
