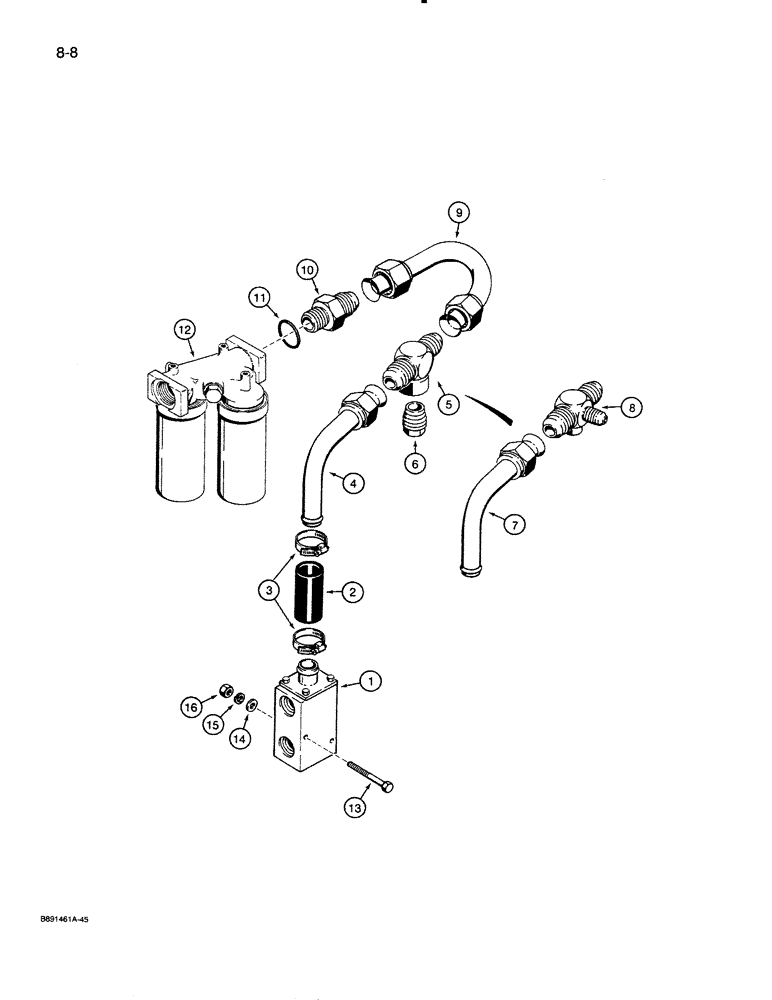

Запчасти Case 821 (8-008) - HYDRAULIC CIRCUIT, COOLER BYPASS VALVE TO FILTER (08) - HYDRAULICS

1

L110287

VALVE,1-7/8" - 12

ASSEMBLY - cooler bypass, parts list Figure 8-044

1шт.

2

BHBL125975

HOSE

- 38 ID x 53.8 OD x 110 mm long

1шт.

3

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable, includes screw 1.25/2.125 HD Worm

4шт.

4

L125453

PIPE,38.09 mm OD x 151, 129 mm L

TUBE - return, by-pass valve to tube at filter, models without auxiliary steering

1шт.

5

218-580

TEE,1 7/8"-12, 37 Degree x 1 1/2"-11 1/2, NPTF Fem Br

- 1-1/2 fem PT base x 1-7/8-12 inch flare, models without auxiliary steering

1шт.

6

221-73

REDUCER,Hex, 1 1/2" x 1/2" NPT

BUSHING - hex reducer, 1-1/2 x 1/2 inch PT, models without auxiliary steering

1шт.

7

L125704

PIPE,38.09 mm OD x 170, 129 mm L

TUBE - return, by-pass valve to tube at filter, use on models with auxiliary steering, Serial Range: -JAK0024165

1шт.

8

L125578

MANIFOLD

- special, return tube, use on models with auxiliary steering, Start Serial: JAK0024165

1шт.

9

L125455

PIPE,38.09 mm OD x 753, 189 mm L

TUBE - return, at filter

1шт.

10

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 inch flare x O-ring boss, Includes: Ref. 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

12

L126373

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-010

1шт.

13

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

14

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.
