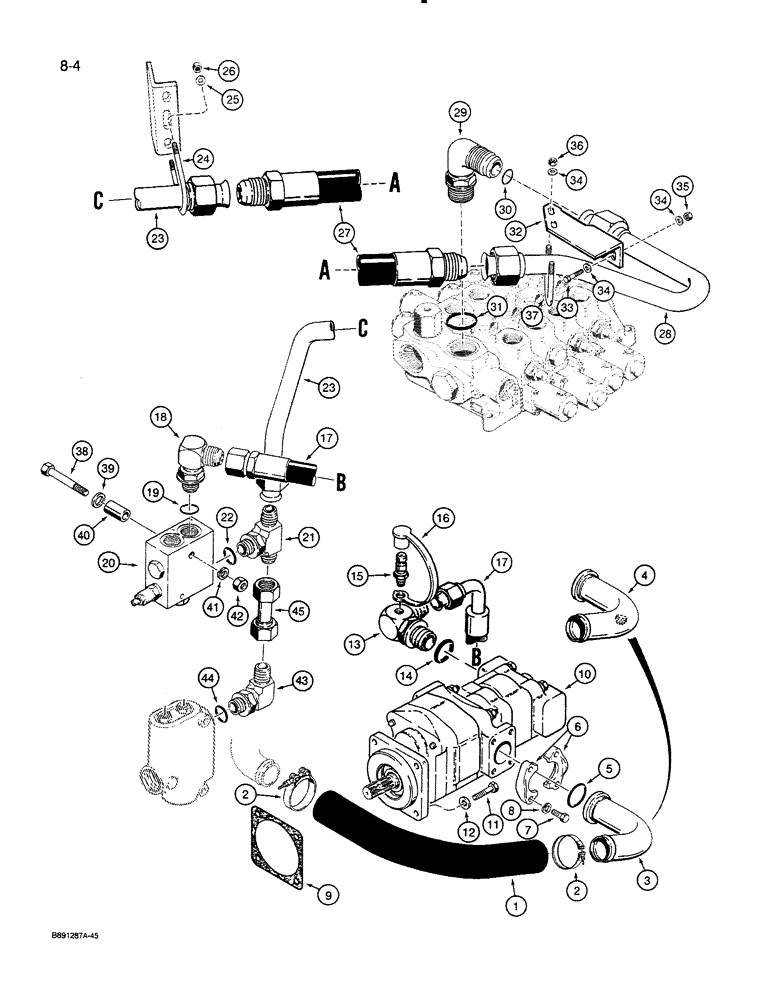

Запчасти Case 821 (8-004) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER CONTROL (08) - HYDRAULICS

1

L125344

HOSE,50.8 mm ID x 800.00 mm

Suction, Hydraulic Reservoir to Pump 50.8 mm ID x 800.00 mm

1шт.

2

L126871

CLAMP

- hose

2шт.

3

L125356

PIPE,50.8 mm OD x 183, 180 mm L

TUBE - suction, at pump, use on models without auxiliary steering

1шт.

4

L125583

TUBE

- suction, at pump, use on models with auxiliary steering

1шт.

5

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- pump

1шт.

6

A14141

FLANGE

- split, tube

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

A12304

GASKET,0.4mm Thk

- mounting, pump

1шт.

10

L126103

PUMP, HYDRAULIC,5.4 CC

PUMP ASSEMBLY - equipment and steering, parts list Figure 8-020

1шт.

L126103R

REMAN-HYD PUMP

821

1шт.

L126103C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 x 45 mm

4шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

R49557

FITTING

ELBOW - 90 degree, special, at hose to unloading valve, Includes: Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

15

H434164

COUPLING

- quick disconnect

1шт.

16

H434163

DUST CAP

CAP - dust, coupler

1шт.

17

L125905

HOSE

- 535 mm long, pump to unloading valve

1шт.

18

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adj, 1-1/16-12 flare x 1-5/16-12 O-ring, Includes: Ref. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - unloading, see Figure 8-042 for correct assembly and parts list

1шт.

21

218-5191

TEE,1 5/8"-12, 37 Degree x1 1/16"-12 x 1 5/16"-12, O-Ring Br

- 1-5/16-12 adj O-ring base x 1-5/8-12 x 1-5/16-12 inch flare, Includes: Ref. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

23

L127933

PIPE,31.75 mm OD x 302, 263 mm L

TUBE - pressure, unloading valve to hose

1шт.

24

L104253

U-BOLT

- tube retaining, lower

1шт.

25

D41740

WASHER

- flat, special, hardened

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

27

L125349

HOSE,31.75mm ID x 615mm L, SAE 100R12

- 615 mm long, pressure, to loader control valve

1шт.

28

L125282

PIPE,91.75 mm OD

TUBE - pressure, hose to loader control valve

1шт.

29

L125908

FITTING

ELBOW - 90 degree, special, at loader control valve, Includes: Ref. 30 and 31

1шт.

30

D51499

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

- 1.114 ID x .070 wide, flare end

1шт.

31

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Boss end

1шт.

32

L125941

SUPPORT

BRACKET - tube mounting, front chassis

1шт.

33

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

34

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

6шт.

35

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

37

L104253

U-BOLT

- tube retaining, lower

1шт.

38

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

2шт.

39

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

2шт.

40

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- unloading valve

2шт.

41

492-11038

LOCK WASHER,3/8"

2шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.

43

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1-5/16-12 inch thread, Incl. Ref. 44

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

45

L127931

PIPE,25.4 mm OD x 81 mm L

TUBE - supply, flow control valve to unloading valve

1шт.
