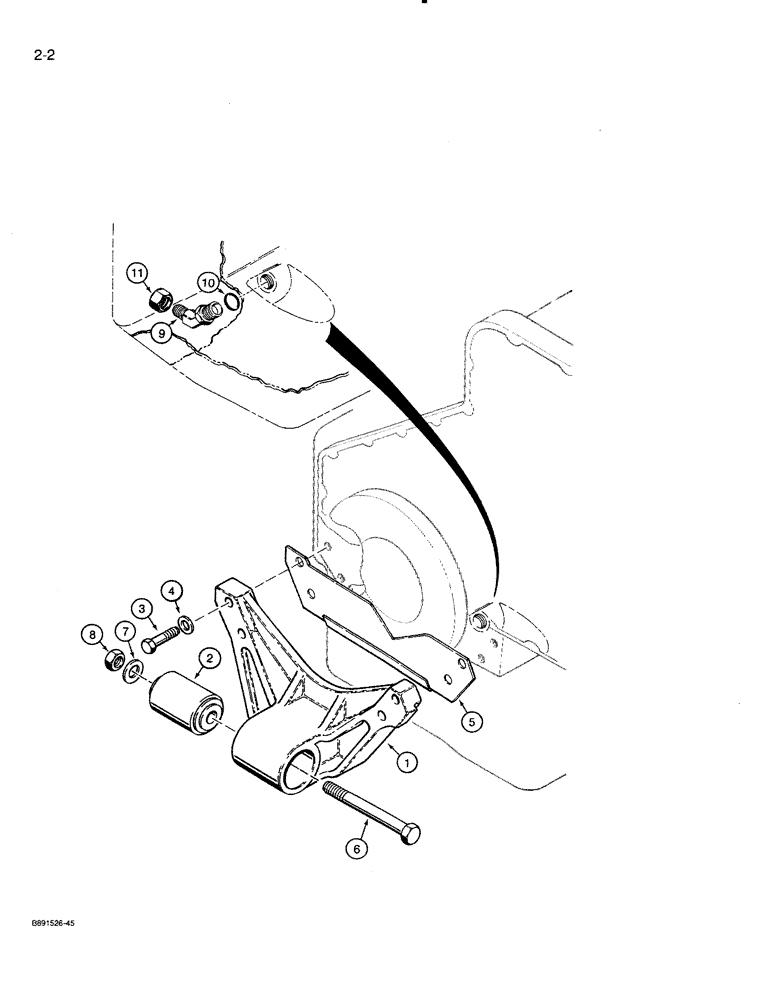

Запчасти Case 821 (2-002) - ENGINE MOUNT AND RELATED PARTS (02) - ENGINE

L127732

SUPPORT

MOUNT ASSEMBLY - engine, Includes: Ref. 1 and 2

1шт.

1

J914117

SUPPORT

MOUNT - engine

1шт.

2

L124020

SHOCK ABSORBER

SPACER - phosphate coated

1шт.

3

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

- hex, 12 mm - 1.75 x 85 mm

4шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat 17/32 x 1-1/16 x .134 inch, hardened

4шт.

5

L125932

LARGE PLATE

SUPPORT - engine mount

1шт.

6

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

1шт.

8

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - hex, self-locking, 3/4 inch NC

1шт.

9

CASL125989

ELBOW

- 45 degree, special, engine oil drain, Includes: Ref. 10

1шт.

10

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

- 19/32 x 5/64 inch

1шт.

11

218-755

CAP,37 Degree, 3/4"-16

1шт.
