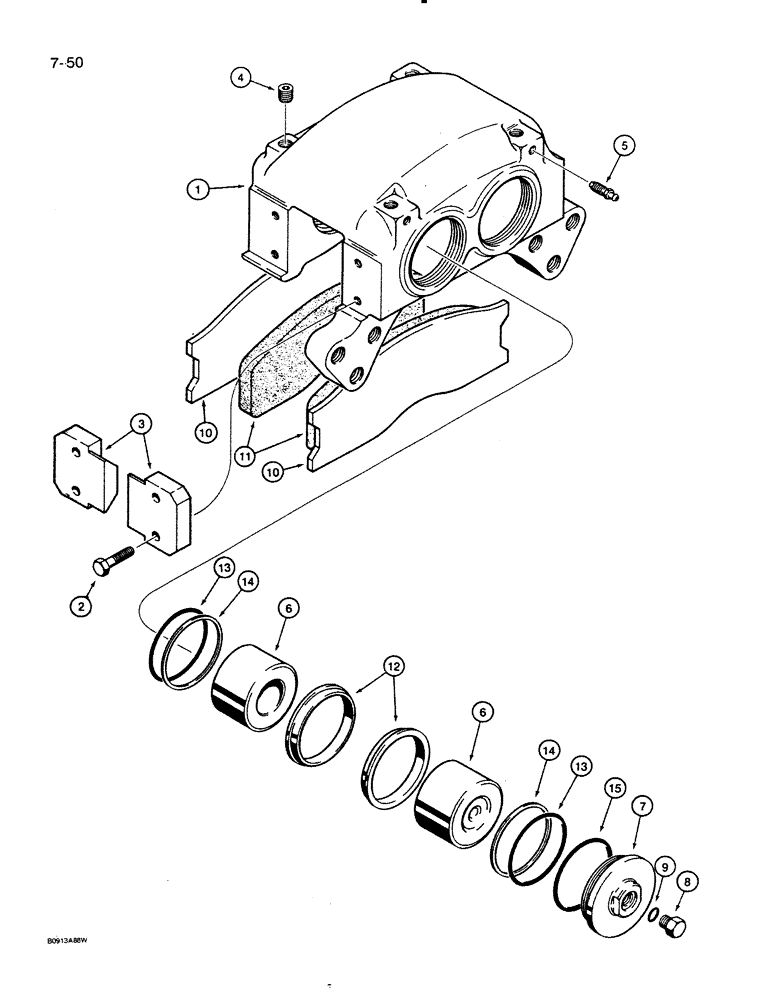

Запчасти Case 821 (7-050) - BRAKE CALIPER, PRIOR TO P.I.N. JAK0023970 (07) - BRAKES

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - brake, service replacement for L127646 caliper assembly, Includes: Ref. 1 - 15

4шт.

L127645 is Rockwell .

1шт.

L127645R

REMAN-BRAKE ASSY.

821 Prior To P.I.N. JAK0023970

4шт.

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

113-2618

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

- hex, 3/8 NC x 1/1/2 inch

8шт.

3

N7962

PLATE

- lining retaining

4шт.

4

221-841

PLUG

- hex socket, 1/4 inch PT

4шт.

5

N7966

BLEEDER

VALVE - bleeder

2шт.

6

N7963

PISTON

- brake

4шт.

7

N7965

COVER

HEAD - piston

2шт.

8

129998

PLUG,1/2" - 20 ORB

Incl. Ref. 9 Hex Hd, 1/2"-20 ORB

2шт.

S300718

SET

KIT - brake shoe and lining, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

11

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

N7964

SEAL KIT

KIT - seal, brake caliper, Includes: Ref. 12 and 15

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston

4шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

4шт.

14

NSS

NOT SOLD SEPARAT

BACKUP RING - piston o-ring

4шт.

15

NSS

NOT SOLD SEPARAT

O-RING - head

2шт.

O-RING HEAD IS NOT PART OF KIT N7964.

1шт.

9

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
