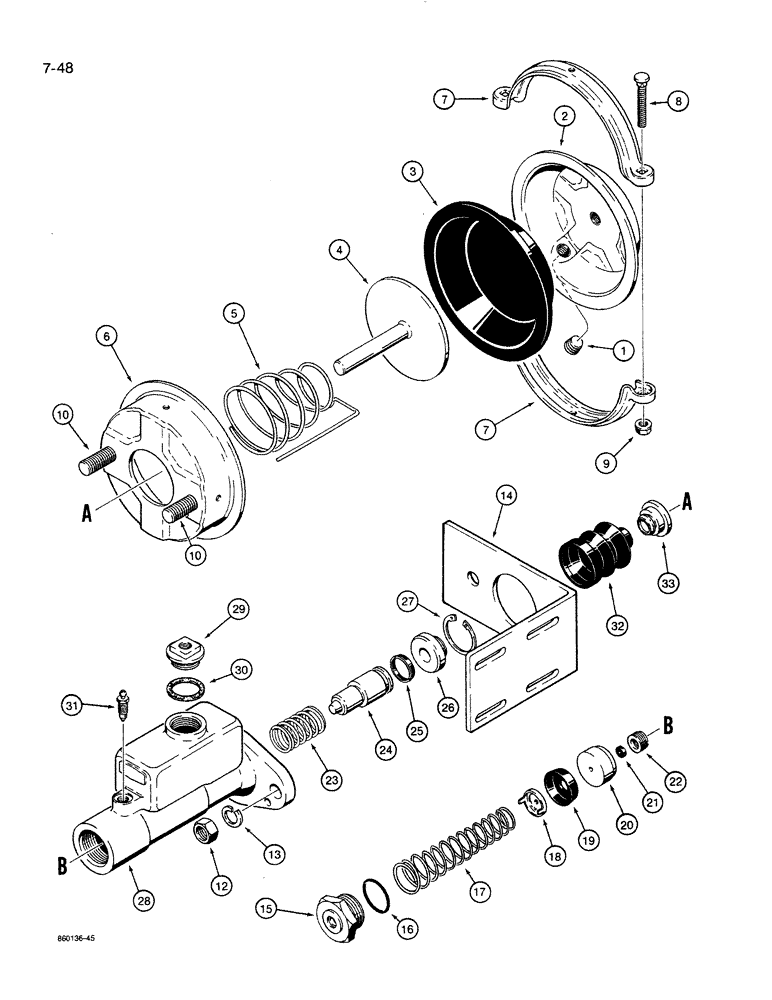

Запчасти Case 821 (7-048) - BRAKE ACTUATOR - L125170 AND L129003 (07) - BRAKES

L125170

CYLINDER

ACTUATOR ASSEMBLY - brake, with 8 inch diaphragm, Includes: Ref. 1 - 33, Serial Range: -JAK0023970

2шт.

L129003

MASTER CYLINDER

ACTUATOR ASSEMBLY - brake, with 9 inch diaphragm, Includes: Ref. 1 - 33, Start Serial: JAK0023970

2шт.

N13034

CHAMBER

ASSEMBLY - air, L125170 brake actuator, with 8 inch diaphragm, Includes: Ref. 1 - 13

1шт.

S301697

CHAMBER

ASSEMBLY - air, L129003 brake actuator, with 9 inch diaphragm, Includes: Ref. 1 - 13

1шт.

1

221-1843

PLUG

- hex socket, 3/8 inch PT

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - air chamber

1шт.

3

N13035

DIAPHRAGM

- N13034 air chamber only, 8 inch OD, if used

1шт.

3

S301699

DIAPHRAGM

- S301697 air chamber only, 9 inch OD, if used

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - push, brake actuator

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - diaphragm return

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air chamber

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - air chamber

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - special

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

NSS

NOT SOLD SEPARAT

STUD - air chamber

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - air chamber, not shown

2шт.

12

425-1110

NUT,5/8"-18, G5

2шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

N8694

SUPPORT

BRACKET - mounting

1шт.

N8695

CYLINDER,200mm Stroke

ASSEMBLY - master, brake actuator, Includes: Ref. 15 - 31

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - end, master cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

17

N8700

SPRING

- return

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

19

NSS

NOT SOLD SEPARAT

CUP - retainer

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON - short

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - piston

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - seat

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - long

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - cup

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - master cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining, bearing

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

N8701

PLUG

- filler

1шт.

30

S114797

SEAL,31.75mm ID x 41.27mm OD x 1.59mm Thk

- filler plug

1шт.

Part of master cylinder repair kit P/N N8937

1шт.

31

S107710

SCREW

- air removal

1шт.

32

N8696

BOOT

- brake actuator

1шт.

33

N13036

GUIDE

- brake actuator, L125170 actuator only

1шт.

33

S301698

GUIDE

- brake actuator, L129003 actuator only

1шт.

N8937

KIT

- master cylinder repair plus a check valve and seat not used in this actuator, Includes Refs. 16, 19, 20, 21, 22, 25, 27 and 30

1шт.
