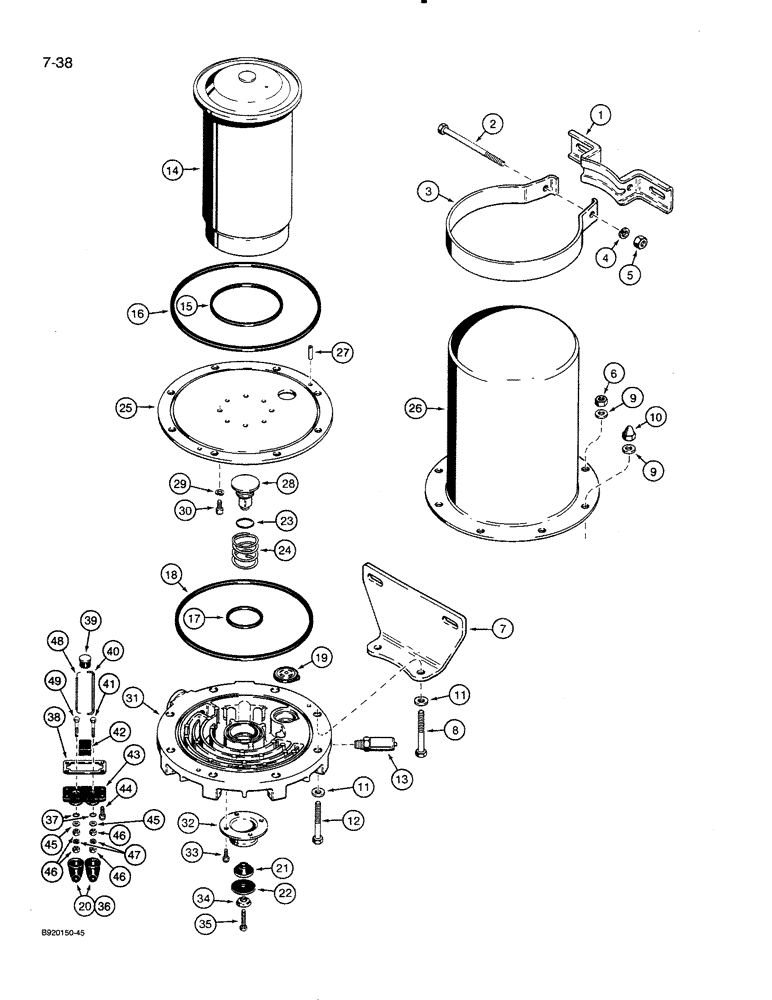

Запчасти Case 821 (7-038) - AIR DRYER (07) - BRAKES

L128082

ACCESSORIES

DRYER ASSEMBLY - air, brake, production, with mounting kit, for service order S301048, shown below and, if required, S300006 mounting kit, Includes: Ref. 1 - 25 and 26 - 49 on Figure 7-40

1шт.

S300006

KIT

- mounting bracket, rotate brackets as needed, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

2

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch

1шт.

3

NSS

NOT SOLD SEPARAT

STRAP - mounting

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

6

131-1133

NUT,3/8"-24, GC

NUT - hex center lock, 3/8 inch NF

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - plate mounting

1шт.

8

428-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

- hex, 3/8 NF x 2-1/2 inch, grade 8

2шт.

304238A1

ACCESSORIES

DRYER ASSEMBLY - air, brake, service (Replaces S301048), Includes: Ref. 9 - 25

1шт.

S301048 AIR DRYER HAS BEEN REPLACED BY 304238A1. AS A COMPLETE UNIT, IT IS A DIRECT SUB. SERVICE KITS ARE DIFFERENT PER BELOW:

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

10

129-525

CROWN NUT,Crown, 3/8"-16

- dome, 3/8 inch NC

6шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

12

414-636

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

- hex, 3/8 NF x 2-1/4 inch

6шт.

13

S300008

VALVE

- relief

1шт.

S300007

KIT

- repair, air dryer, Includes: Ref. 14 - 20

1шт.

109067A1

CARTRIDGE

KIT - cartridge, Includes: Ref. 14 - 20.

1шт.

Kit was released in response to complaints that the Ref. 14 NSS Cartridge could only be obtained by ordering the more expensive S300007 Kit.

1шт.

14

NSS

NOT SOLD SEPARAT

CARTRIDGE - air dryer

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 4 inch ID

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

S300011

SEAL KIT

KIT - seal and check valve, Includes: Ref. 16 - 20

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

16

NSS

NOT SOLD SEPARAT

RING - seal, cartridge cover to plate, 8 inch ID

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 2 inch ID

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

18

NSS

NOT SOLD SEPARAT

RING - seal, dryer body to plate, 7 inch ID

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

Part of P/N 109067A1 Cartridge.

1шт.

20

S107727

BOOT

- thermostat terminal

2шт.

Part of P/N 109067A1 Cartridge.

1шт.

S300010

KIT

- valve and diaphragm, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - air dryer

1шт.

22

NSS

NOT SOLD SEPARAT

DIAGHRAGM - valve

1шт.

23

S113403

O-RING

SEAL - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - separation

1шт.

109262A1

PACKAGE, REPAIR

KIT end cover, Includes: P/N 304262A1 Purge Valve Assy. Kit, P/N 304261A1 End Cover Assy. Kit, P/N 304257A1 Purge Valve Maint. Kit, P/N 304253A1 24 V HTR/Thermo Kit, P/N 304249A1 Dessicant Cartridge Kit, P/N S300006 Mounting Bracket Kit

1шт.

L128082

ACCESSORIES

DRYER ASSEMBLY - air, brake, with mounting kit, continued, Includes: Ref. 1 - 49

1шт.

S301048

ACCESSORIES

DRYER ASSEMBLY - air, brake, without mounting kit, continued, Includes: Ref. 1 - 49

1шт.

26

NSS

NOT SOLD SEPARAT

COVER - cartridge

1шт.

27

138-2031

PIN,3/16" x 7/8", Coiled

2шт.

28

NSS

NOT SOLD SEPARAT

PISTON - air dryer

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT - hex socket head, 1/4 NC x 5/8 inch

4шт.

31

NSS

NOT SOLD SEPARAT

BASE - air dryer, with heater element

1шт.

32

NSS

NOT SOLD SEPARAT

FLANGE - exhaust

1шт.

33

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- No. 10 NC x 5/8 inch

4шт.

34

NSS

NOT SOLD SEPARAT

WASHER - diaphragm retaining

1шт.

A standard .25" washer. This is not a special application washer.

1шт.

35

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

S300009

KIT

- thermostat, includes instructions, Includes: Ref. 36 - 49

1шт.

36

S107727

BOOT

- thermostat terminal

2шт.

37

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

2шт.

38

S116751

GASKET

- thermostat cover

1шт.

39

NSS

NOT SOLD SEPARAT

THERMOSTAT - air dryer

1шт.

40

NSS

NOT SOLD SEPARAT

LEAD - thermostat

1шт.

41

NSS

NOT SOLD SEPARAT

BOLT - thermostat terminal

1шт.

42

D75929

SPACER

- foam, thermostat

1шт.

43

NSS

NOT SOLD SEPARAT

COVER - thermostat

1шт.

44

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- No. 10 NC x 5/8 inch

4шт.

45

495-31022

WASHER,#10

2шт.

46

225-20210

NUT,#10-32, Brass

4шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

48

NSS

NOT SOLD SEPARAT

LEAD - heating element

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - heating element terminal

1шт.
