(7-034) - AIR COMPRESSOR HEAD REPAIR KIT

Запчасти Case 821 (7-034) - AIR COMPRESSOR HEAD REPAIR KIT (07) - BRAKES

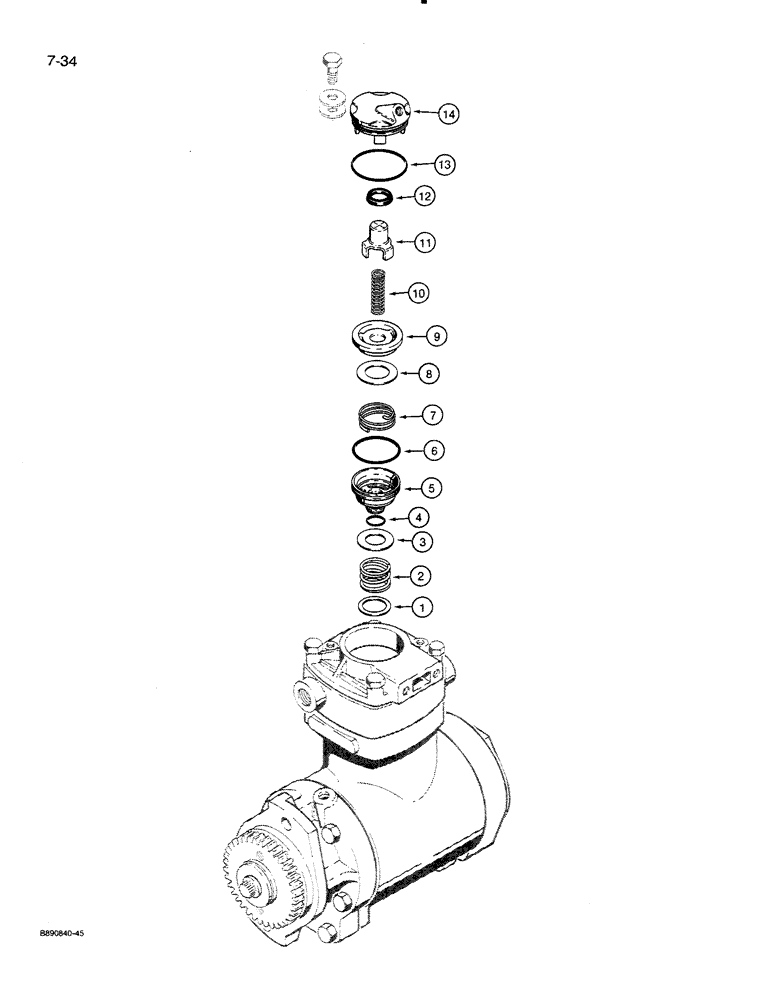

Схема запчастей Case 821 - (7-034) - AIR COMPRESSOR HEAD REPAIR KIT (07) - BRAKES
13
1
5
2
7
12
4
9
14
6
3
11
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

121302A1

PACKAGE, REPAIR

KIT - repair, compressor head, also includes items 29 and 32 on Figure 7-032 (Replaces S300693), Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - exhaust valve, lower

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - lower spring

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - small, exhaust valve

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - exhaust

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - large, exhaust valve

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - intake valve, upper

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, intake valve

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - intake

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - unloading valve

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - unloading valve

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rectangular, poppet

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - unloading valve

1шт.

Part of valve repair kit P/N S300694 and pages 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - unloading

1шт.

121302A1

PACKAGE, REPAIR

KIT - valve repair, Includes Refs. 1, 2, 3, 4, 6, 7, 8, 10, 12 and 13 as well as Refs. 29 and 32 on Figure 7-032 (Replaces S300694)

1шт.
