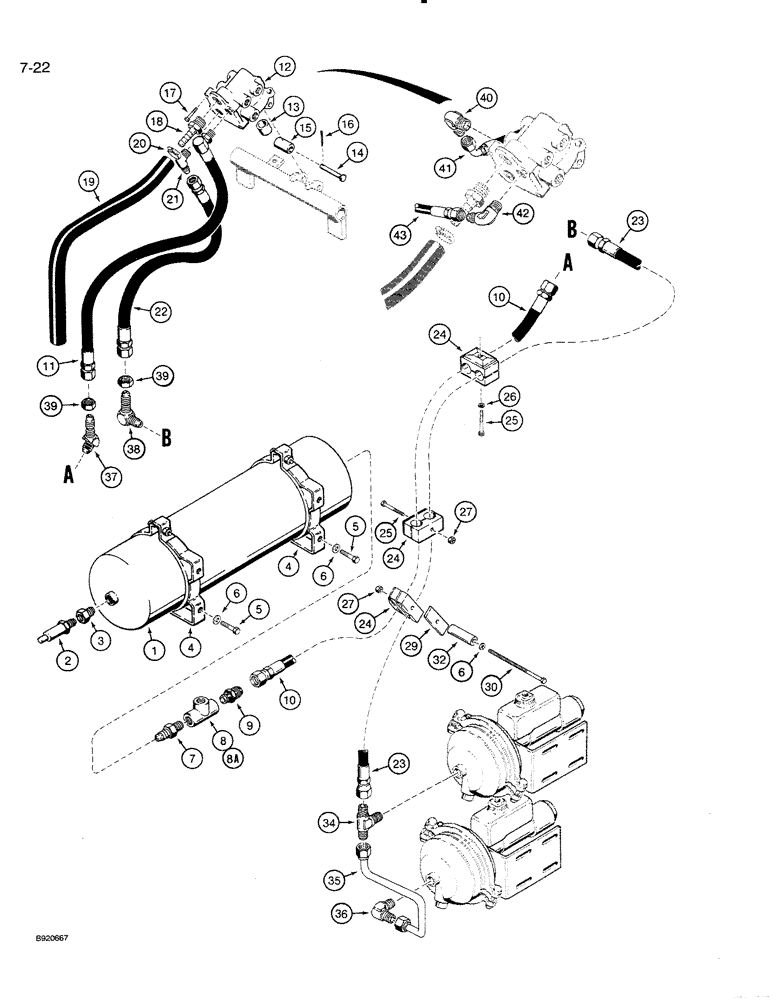

Запчасти Case 821 (7-022) - UPPER RESERVOIR TO BRAKE VALVE AND ACTUATORS (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system, upper

1шт.

2

L48992

VALVE,1/4"

- check, air reservoir, rear

1шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

4

L110438

SUPPORT

BRACKET - reservoir, mounting

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

6

D41740

WASHER

- flat, hardened

5шт.

7

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - hex, 1/2 inch PT

1шт.

8

217-1171

TEE,Female, 1/2"-14 x 3/8"-18 Br

- pipe, 1/2 PT branch x 1/2 x 3/8 inch PT, if used

1шт.

8a

217-14

TEE,1/2"-14 NPTF Fem

- pipe, 1/2 inch, if used

1шт.

9

218-864

HYD CONNECTOR,1/2", Tube x 1/2" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

10

L118307

HOSE

- 82 inch long, Serial Range: reservoir-valve

1шт.

11

1970015C1

HOSE

- 530 mm long, Serial Range: reservoir-valve

1шт.

Models with cab SN prior to JAB0076980 and/or canopy SN prior to JAB0086240.

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - brake, for correct assembly and components, see Figure 7-042

1шт.

13

L124593

TAPPET

PLUNGER - valve, brake

1шт.

14

141-59

CLEVIS PIN,3/8" x 2 1/4"

PIN - clevis, 3/8 x 2-1/4 inch, hardened

1шт.

15

1339691C1

SHIFTER ROLLER

ROLLER - brake actuating

1шт.

16

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

18

1340073C1

FITTING

ADAPTER - straight, 3/8 inch barb stem x 1/2 inch PT

1шт.

19

1340074C1

HOSE

- 3/8 inch (10 mm) x 36 inch (914 mm) long, exhaust, cut from 1338159C1 bulk hose, see below

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, N0. 10 type F

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

Models with cab SN prior to JAB0076980 and/or canopy SN prior to JAB0086240.

1шт.

22

1970016C1

HOSE

- 460 mm long, Serial Range: valve-actuator

1шт.

Models with cab SN prior to JAB0076980 and/or canopy SN prior to JAB0086240.

1шт.

23

L125779

HOSE ASSY.

HOSE - 1865 mm long, Serial Range: valve-actuator

1шт.

24

L107932

CLAMP

- double, includes both plastic halves and top steel plate

3шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

29

L125693

LARGE PLATE

PLATE - mounting, hose clamp

1шт.

30

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

- hex, 5/16 NC x 5-1/2 inch

1шт.

32

D40463

SPACER

- 17/32 x 27/32 x 2-1/2 inch

1шт.

34

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

- 3/4-16 flare branch x 3/8 inch PT

1шт.

35

L125042

PIPE

TUBE - upper to lower actuator, Serial Range: -JAK0023970

1шт.

35

L129498

TUBE,12.7 mm OD

- upper to lower actuator, Start Serial: JAK0023970

1шт.

36

218-889

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

37

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 45 degree, bulkhead, 3/4-16 inch flare

1шт.

38

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

39

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

40

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

Models with cab SN JAB0076980 and after and/or canopy SN JAB0086240 and after.

1шт.

41

1340427C1

HOSE

- 500 mm long, Serial Range: valve-actuator

1шт.

Models with cab SN JAB0076980 and after and/or canopy SN JAB0086240 and after.

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

Models with cab SN JAB0076980 and after and/or canopy SN JAB0086240 and after.

1шт.

43

1340426C1

HOSE

- 460 mm long, Serial Range: reservoir-valve

1шт.

Models with cab SN JAB0076980 and after and/or canopy SN JAB0086240 and after.

1шт.

1338159C1

HOSE

- 3/8 inch (10 mm) ID x 100 ft (2540 mm) long

1шт.
