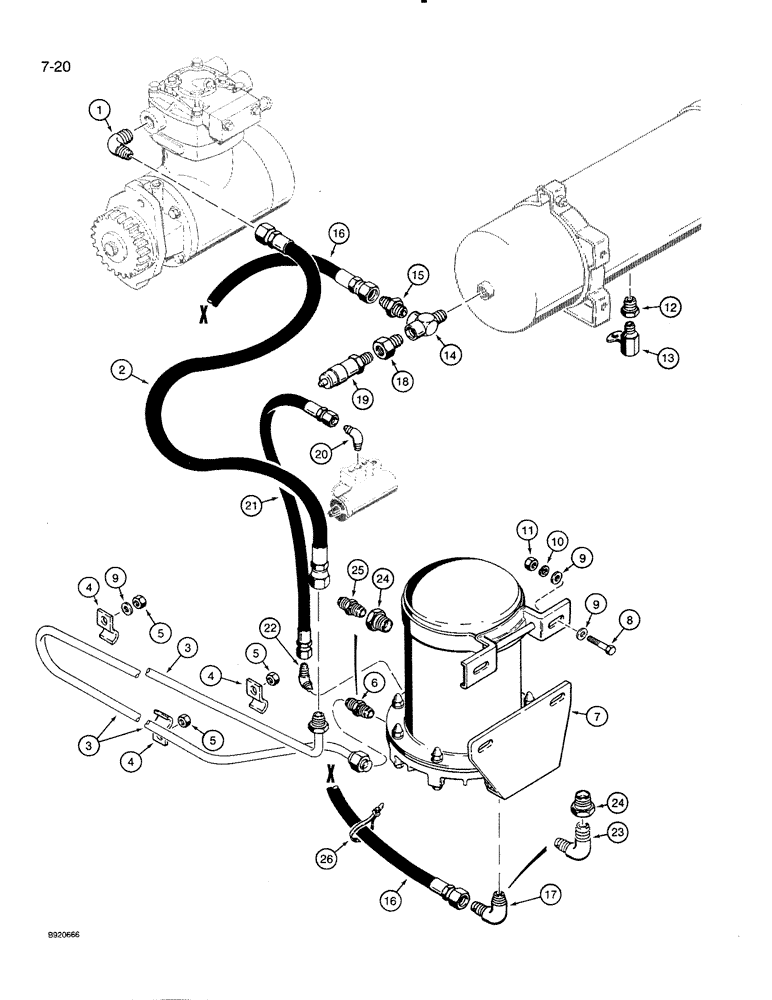

Запчасти Case 821 (7-020) - AIR DRYER SYSTEM (07) - BRAKES

1

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

2

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to air dryer supply tube

1шт.

3

L125930

TUBE,12.7 mm OD

- supply hose to air dryer

1шт.

4

S79585

CLAMP

- tube

3шт.

5

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

6

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

ADAPTER - straight, 3/4-16 flare x 3/4 inch PT, if used

1шт.

7

REF

INSTRUCTION

DRYER ASSEMBLY - air, brake, for correct assembly and components, see Figure 7-038

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

9

D41740

WASHER

- flat, 25/64 x 1 x 7/64, hardened

11шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch PT, if used

1шт.

13

L112624

LOCK VALVE

VALVE - drain, air reservoir, if used

1шт.

14

217-54

TEE,1/2"-14 NPTF Fem x 1/2"-14 NPTF Male Run

- pipe, 1/2 inch PT

1шт.

15

218-864

HYD CONNECTOR,1/2", Tube x 1/2" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

16

L125668

HOSE ASSY.

HOSE - 700 mm long, air, Serial Range: dryer-reservoir

1шт.

17

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT, if used

1шт.

18

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

19

L48992

VALVE,1/4"

- check, air reservoir

1шт.

20

218-888

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 9/16-18 flare x 1/8 inch PT

1шт.

21

L125943

HOSE

- 525 mm long, air, Serial Range: dryer-governor

1шт.

22

218-881

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4", NPTF, Brass

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

23

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT, if used

1шт.

24

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

if used 3/4"-14 NPTF x 1/2"-18 Fem NPTF

2шт.

25

218-864

HYD CONNECTOR,1/2", Tube x 1/2" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT, if used

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
