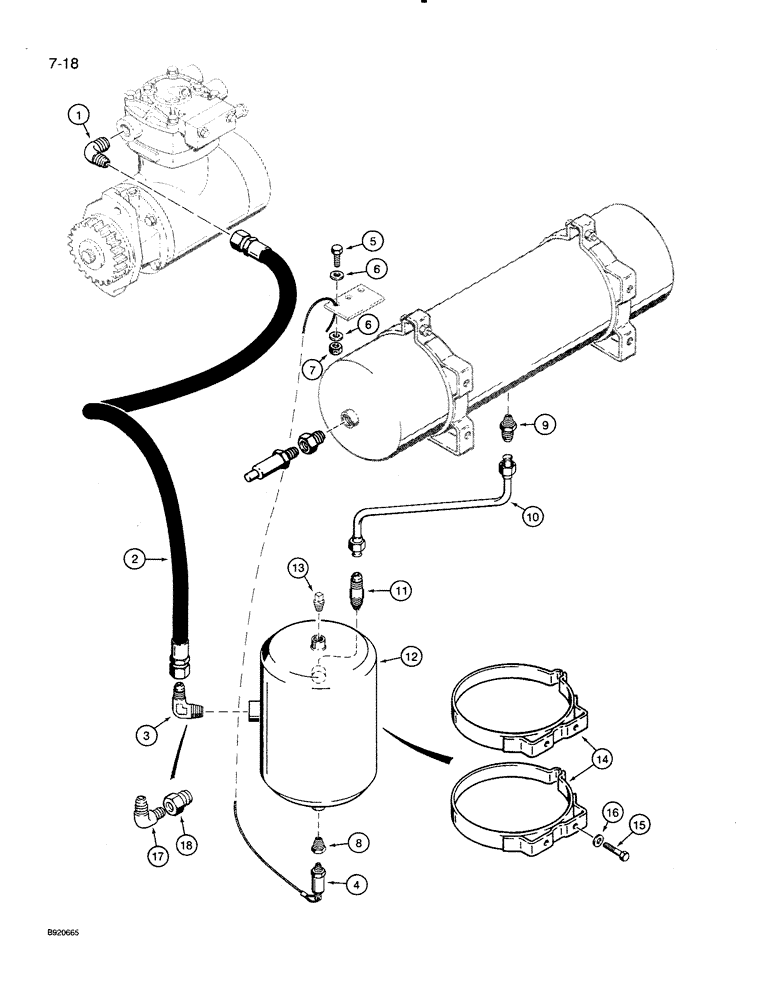

Запчасти Case 821 (7-018) - AIR COMPRESSOR SYSTEM, COMPRESSOR TO LOWER RESERVOIR (07) - BRAKES

1

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

2

L125668

HOSE ASSY.

HOSE - 700 mm long, air compressor to lower reservoir

1шт.

3

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT, if used

1шт.

4

L125766

BLEEDER VALVE

VALVE - drain, air

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

6

95-81064

WASHER,5/16" x 3/4" x .049"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

7

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

8

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch PT

1шт.

9

218-863

HYD CONNECTOR,1/2", Tube x 3/8" NPTF, 37 Degree, Brass

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

10

L125040

PIPE,236, 150 mm L

TUBE - lower reservoir to upper air reservoir

1шт.

11

218-889

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8", NPTF, Brass

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

12

L123951

RESERVOIR

- brake, lower

1шт.

13

217-77

PLUG

- square, 3/8 PT

1шт.

14

L110438

SUPPORT

BRACKET - reservoir, lower

2шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

16

D41740

WASHER

- flat, 25/64 x 1 x 7/64, hardened

4шт.

17

218-884

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2", NPTF, Brass

- 90 degree, 3/4-16 flare x 1/2 inch PT, if used

1шт.

18

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

if used 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.
