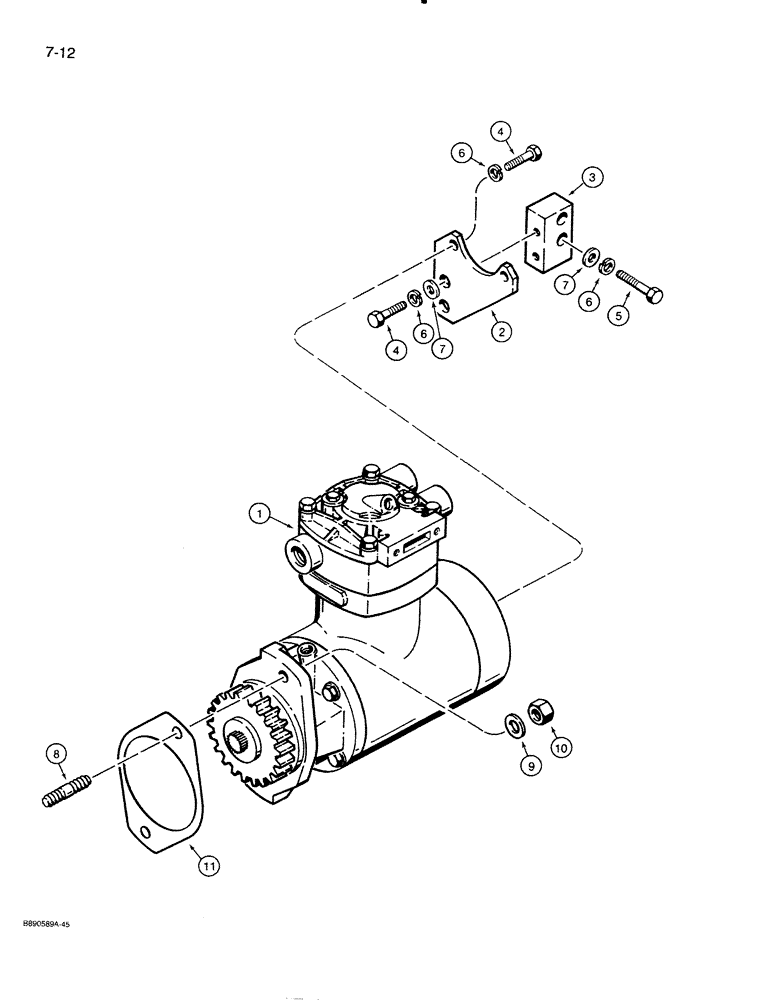

Запчасти Case 821 (7-012) - AIR COMPRESSOR MOUNTING (07) - BRAKES

1

A77656

COMPRESSOR

COMPRESSOR ASSEMBLY - air, see parts list Figure 7-032

1шт.

1

L125678R

REMAN-COMPRESSOR

821

1шт.

1

L125678C

CORE-COMPRESSOR

Return Number

1шт.

2

J914722

BRACE

BRACKET - mounting, compressor

1шт.

3

J914723

SPACER

BLOCK - support, mounting bracket

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 30, 8.8

4шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

BOLT, Hex, M10 x 45, 10.9

2шт.

6

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

6шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

4шт.

8

J913370

STUD

STUD - mounting, air compressor to gear pump

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M13.5 x 24.5 x 3, HT

2шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

11

J913287

GASKET,1.05mm Thk

GASKET - air compressor to gear pump

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT, goes into engine block behind compressor, not shown

1шт.
