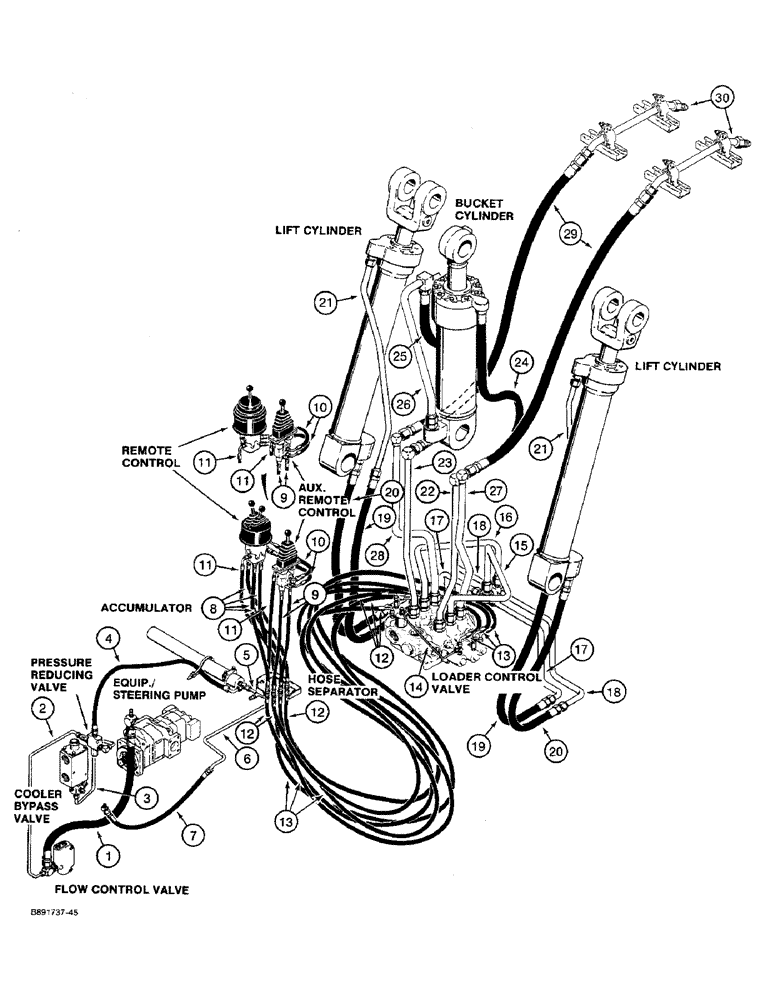

Запчасти Case 821 (1-018) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - THREE SPOOL VALVE, STEERING PUMP TO CYLINDERS (00) - PICTORIAL INDEX

1

HOSE, elbow at steering pump to elbow at rear port of flow control valve, Figure 8-068

1шт.

2

Tube, elbow at flow control valve to check valve at pressure reducing valve, Figure 8-068

1шт.

3

Tube, elbow at pressure reducing valve to manifold at lower port of cooler bypass valve, Figure 8-068

1шт.

4

Hose, pressure reducing valve to tee at accumulator, Figure 8-068

1шт.

5

Tube, accumulator to hose separator, Figure 8-068

1шт.

6

Tube, hose separator to hose at hydraulic reservoir, Figure 8-068

1шт.

7

Hose, tube to hydraulic reservoir, Figure 8-068

1шт.

8

Hose, remote control to hose separator ports 1A, 1B, 2A, and 2B, Figures 8-058 and 8-060

1шт.

9

Hose, auxiliary remote control to hose separator ports 3A and 3B, Figures 8-058 and 8-060

1шт.

10

Hose, auxiliary remote control to remote control, Figures 8-058 and 8-060

1шт.

11

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports, Figures 8-058 and 8-060

1шт.

12

Hose, hose separator to ports, 1B, 2B, and 3B, Figure 8-062

1шт.

13

Hose, hose separator to ports, 1A, 2A, and 3A, Figure 8-062

1шт.

14

Tube, inlet and outlet section to tee at port 1A, Figure 8-062

1шт.

15

Supply tube, right-hand, loader control valve to lift cylinders, Figure 8-012

1шт.

16

Supply tube, left-hand, loader control valve to lift cylinders, Figure 8-012

1шт.

17

Supply tube, to rod end of lift cylinder, Figure 8-012

1шт.

18

Supply tube, to closed end of lift cylinder, Figure 8-012

1шт.

19

Hose, to rod end of lift cylinder, Figure 8-012

1шт.

20

Hose, to closed end of lift cylinder, Figure 8-012

1шт.

21

Tube, to rod end of lift cylinder, Figure 8-012

1шт.

22

Supply tube, right-hand, to end of bucket cylinder, Figure 8-014

1шт.

23

Supply tube, left-hand, to closed end of bucket cylinder, Figure 8-014

1шт.

24

Hose, tube to rod end of bucket cylinder, Figure 8-014

1шт.

25

Hose, tube to closed end bucket cylinder, Figure 8-014

1шт.

26

Tube, bucket cylinder, closed end, Figure 8-014

1шт.

27

Tube, right-hand, at loader control valve, auxiliary circuit, Figure 8-016

1шт.

28

Tube, left-hand, at loader control valve, auxiliary circuit, Figure 8-016

1шт.

29

Hose, auxiliary circuit, Figure 8-016

1шт.

30

Tube, at loader arm, Figure 8-016

1шт.
