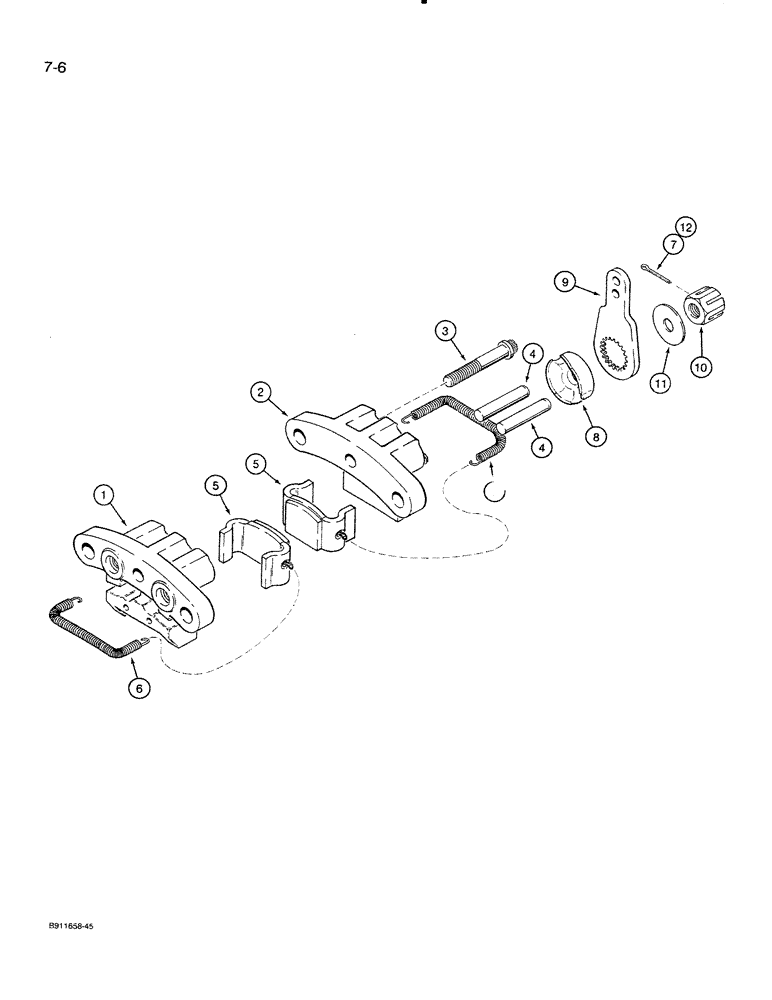

Запчасти Case 821 (7-006) - PARKING BRAKE ASSEMBLY P.I.N. JAK0024165 AND AFTER (07) - BRAKES

L129717

BRAKE, PARKING

BRAKE ASSEMBLY - parking, see Figure 7-008 for mounting, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, transmission side

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - parking brake, cam and lever side

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - special, 12 point

3шт.

4

101981A1

PIN

- special, straight

2шт.

101987A1

KIT

- lining, service, Includes: Ref. 5 - 7 and lining assembly

1шт.

101975A1

BRAKE, PARKING

LINING ASSEMBLY - parking brake, Includes: Ref. 5 and 6

2шт.

5

NSS

NOT SOLD SEPARAT

PAD - brake lining, includes holder

1шт.

6

101976A1

SPRING

- brake pad

1шт.

7

101985A1

PIN, SPLIT (COTTER)

PIN - special, cotter

1шт.

101988A1

KIT

- cam and lever, Includes: Ref. 8 - 12

1шт.

8

101982A1

CAM

- parking brake

1шт.

9

101983A1

LEVER

- brake actuator

1шт.

101992A1

SET

KIT - lever hardware, Includes: Ref. 10 - 12 and nut and washer assembly

1шт.

101986A1

SLOTTED NUT

NUT AND WASHER ASSEMBLY - special, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - castle

1шт.

11

101984A1

WASHER

- flat

1шт.

12

101985A1

PIN, SPLIT (COTTER)

PIN - special, cotter

1шт.
